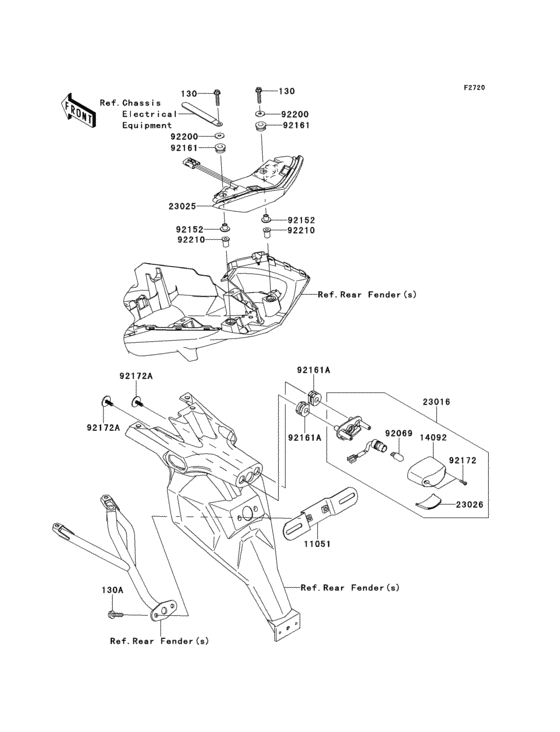

Taillight(s) Diagram Kawasaki KLE650 Versys 650 ABS
- Year
- 2011
- Model code
- KLE650DBF
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Versys 650 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0525 BOLT-FLANGED,5X25 |
130BA0525 |
from US $0.95 |
||
|
130A
|
130A
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
11051
|
11051
11051-1503 BRACKET,LICENSE |
11051-1503 |
from US $10.77 |
||
|
14092
|
14092
14092-0001 COVER,LICENSE LAMP |
14092-0001 |
from US $13.15 |
||
|
23016
|
23016
23016-0043 LAMP-ASSY,LICENSE |
23016-0043 |
from US $24.74 |
||
| replacements | |||||
|
23016
|
23016
23016-0555 LAMP-ASSY,LICENSE |
23016-0555 |
from US $23.33 |
||
|
23016
|
23016
23016-0617 LAMP-ASSY,LICENSE |
23016-0617 |
from US $23.33 |
||
|
23025
|
23025
23025-0316 LAMP-TAIL |
23025-0316 |
from US $140.16 |
||
| replacement | |||||
|
23025
|
23025
23025-0357 LAMP-TAIL |
23025-0357 |
from US $140.16 |
||
|
23026
|
23026
23026-0015 LENS,LICENSE LAMP |
23026-0015 |
from US $18.53 |
||
| replacements | |||||
|
23026
|
23026
23026-0035 LENS,LICENCE LAMP |
23026-0035 |
from US $19.32 |
||
|
23026
|
23026
23026-0028
LENS,LICENCE LAMP
|
23026-0028 |
— | ||
|
92069
|
92069
92069-1016 BULB,12V 5W |
92069-1016 |
from US $3.96 |
||
|
92152
|
92152
92152-0092 COLLAR |
92152-0092 |
from US $3.64 |
||
|
92161
|
92161
92161-0317 DAMPER |
92161-0317 |
from US $1.58 |
||
|
92161A
|
92161A
92161-0776 DAMPER |
92161-0776 |
from US $3.54 |
||
|
92172
|
92172
92172-0343 SCREW,TAPPING,2.9X13 |
92172-0343 |
from US $0.79 |
||
|
92172A
|
92172A
92172-0481 SCREW,TAPTITE,5X16 |
92172-0481 |
from US $1.27 |
||
|
92200
|
92200
92200-0583 WASHER,5.2X16X1.2 |
92200-0583 |
from US $0.79 |
||
|
92210
|
92210
92210-0498 NUT,5MM |
92210-0498 |
US $5.45 |
||
| replacement | |||||
|
92210
|
92210
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
