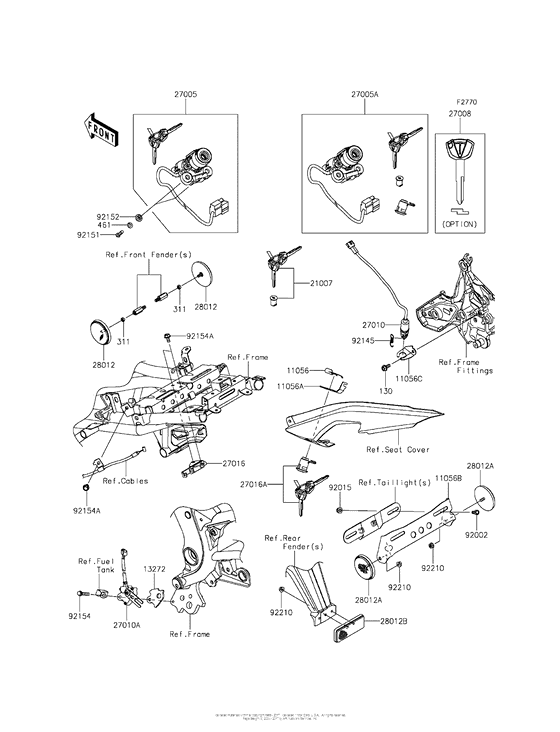

Ignition Switch Diagram Kawasaki KLE650 Versys 650 ABS
- Year
- 2015
- Model code
- KLE650FFF
- Sales region
- USA
- Engine Capacity
- 650
- Model
- Versys 650 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11056
|
11056
11056-0238 BRACKET |
11056-0238 |
from US $3.17 |
||
|
11056A
|
11056A
11056-2119 BRACKET,SEAT LOCKシート ロツク |
11056-2119 |
from US $2.22 |
||
|
11056B
|
11056B
11056-2773 BRACKET,REFLECTOR |
11056-2773 |
from US $10.45 |
||
|
11056C
|
11056C
11056-3974 BRACKET,RR BRAKE SW. |
11056-3974 |
from US $1.27 |
||
|
13272
|
13272
13272-1330 PLATE |
13272-1330 |
from US $1.90 |
||
|
21007
|
21007
21007-5077 ROTOR,LOCK,TANK CAP |
21007-5077 |
from US $104.46 |
||
| replacement | |||||
|
21007
|
21007
21007-5083 Rotor,Lock,Tank Cap |
21007-5083 |
from US $87.07 |
||
|
27005
|
27005
27005-0592 SWITCH-ASSY-IGNITION |
27005-0592 |
from US $186.44 |
||
|
27005A
|
27005A
27005-5153 SWITCH-ASSY-IGNITION |
27005-5153 |
from US $326.59 |
||
|
27008
|
27008
27008-0596 KEY-LOCK,BLANK |
27008-0596 |
from US $13.15 |
||
|
27010
|
27010
27010-0095 SWITCH,REAR BRAKE |
27010-0095 |
from US $19.01 |
||
|
27010A
|
27010A
27010-0722 SWITCH,SIDE STAND |
27010-0722 |
from US $82.13 |
||
|
27016
|
27016
27016-0008 LOCK-ASSY,SEAT STRIKE |
27016-0008 |
from US $10.30 |
||
|
27016A
|
27016A
27016-5386 LOCK-ASSY,SEAT |
27016-5386 |
from US $66.27 |
||
|
28012
|
28012
28012-0001 REFLECTOR-REFLEX,FR,S |
28012-0001 |
from US $16.32 |
||
|
28012A
|
28012A
28012-0002 Reflector-reflex |
28012-0002 |
from US $16.32 |
||
|
28012B
|
28012B
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92002
|
92002
112BA0612 BOLT-UP SET |
112BA0612 |
from US $1.25 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92145
|
92145
92145-0091 SPRING,REAR BRAKE SWI |
92145-0091 |
from US $1.90 |
||
|
92151
|
92151
92154-1858 BOLT,TORX,6X22 |
92154-1858 |
from US $3.02 |
||
|
92152
|
92152
92152-1535 COLLAR,6.15X10.15X6 |
92152-1535 |
from US $1.74 |
||
|
92154
|
92154
92154-1040 BOLT,FLANGED,6X30フランジ，6X30 |
92154-1040 |
from US $1.11 |
||
|
92154A
|
92154A
92154-1050 BOLT,FLANGED,6X12 |
92154-1050 |
from US $0.79 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
||
