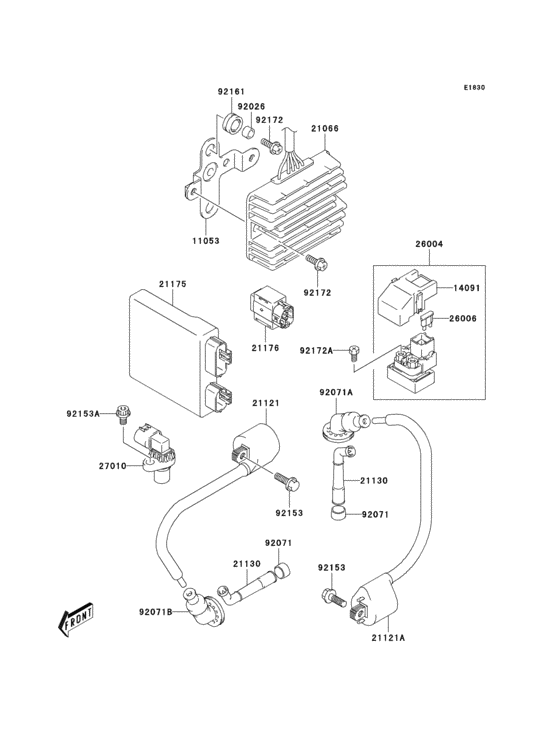

Ignition System Diagram Kawasaki KLV1000
- Year
- 2005
- Model code
- LV1000-A2H
- Sales region
- Europe (General)
- Engine Capacity
- 1000
- Model
- LV1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S065
Bracket
|
11053-S065 |
— | ||
|
14091
|
14091
14091-S005 カバー |
14091-S005 |
US $9.66 |
||
|
21066
|
21066
21066-S010
Regulator-voltage
|
21066-S010 |
— | ||
|
21121
|
21121
21121-S008
Coil-ignition
|
21121-S008 |
— | ||
|
21121A
|
21121A
21121-S009
Coil-ignition
|
21121-S009 |
— | ||
|
21130
|
21130
21130-S008
Cap-spark plug
|
21130-S008 |
— | ||
|
21175
|
21175
21175-S004
Control unit-electronic
|
21175-S004 |
— | ||
|
21176
|
21176
21176-S012 Sensor |
21176-S012 |
US $78.99 |
||
|
26004
|
26004
26004-S004
Fuse-assy
|
26004-S004 |
— | ||
|
26006
|
26006
26006-S002 ヒューズ30a |
26006-S002 |
US $1.74 |
||
|
27010
|
27010
27010-S043
Switch,cam position
|
27010-S043 |
— | ||
|
92026
|
92026
92026-S142
Spacer,6.5x9x6.7
|
92026-S142 |
— | ||
|
92071
|
92071
92071-S014 GROMMET,SPARK PLUG CA |
92071-S014 |
US $7.33 |
||
|
92071A
|
92071A
92071-S011
Grommet,rr
|
92071-S011 |
— | ||
|
92071B
|
92071B
92071-S012
Grommet,fr
|
92071-S012 |
— | ||
|
92153
|
92153
92153-S002 Bolt |
92153-S002 |
from US $0.95 |
||
| replacement | |||||
|
92153
|
92153
92153-S559 Bolt |
92153-S559 |
US $2.48 |
||
|
92153A
|
92153A
92153-S510 Bolt |
92153-S510 |
US $3.03 |
||
|
92161
|
92161
92161-S186
Damper
|
92161-S186 |
— | ||
|
92172
|
92172
92172-S344 SCREW |
92172-S344 |
US $2.48 |
||
|
92172A
|
92172A
92172-S035 SCREW |
92172-S035 |
from US $1.10 |
||
