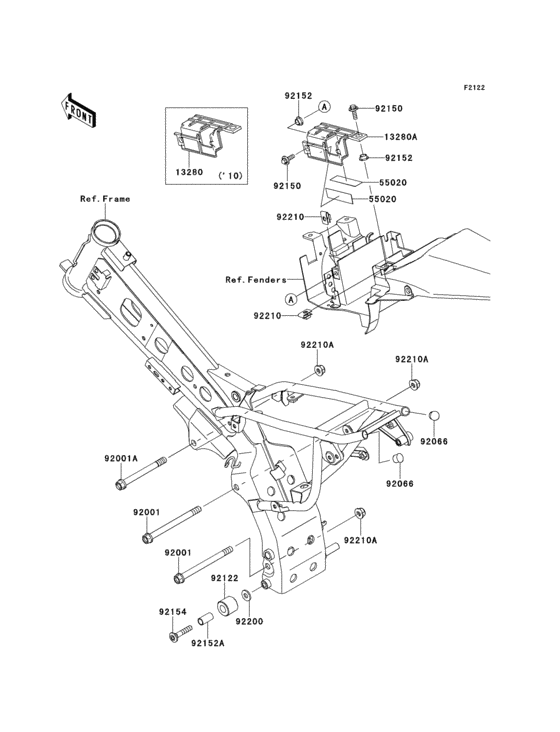

Engine mount Diagram Kawasaki KLX110 KLX110L
- Year
- 2013
- Model code
- KLX110DDF
- Sales region
- USA
- Engine Capacity
- 110
- Frame
- JKALXSD1 DDA85434 - DDA88967
- Model
- KLX110L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13280A
|
13280A
13280-0384 HOLDER,BATTERY |
13280-0384 |
from US $5.70 |
||
|
55020
|
55020
55020-0527 GUARD |
55020-0527 |
from US $4.91 |
||
|
92001
|
92001
92001-1720 BOLT,FLANGED,10X125 |
92001-1720 |
from US $6.97 |
||
|
92001A
|
92001A
92001-1751 BOLT,FLANGED,10X105,B |
92001-1751 |
from US $6.65 |
||
|
92066
|
92066
92066-1081 PLUG,HEAD LAMP |
92066-1081 |
from US $6.34 |
||
|
92122
|
92122
92122-0023 ROLLER,CHAIN GUIDE |
92122-0023 |
from US $6.65 |
||
|
92150
|
92150
92150-1892 Bolt |
92150-1892 |
from US $3.90 |
||
|
92152
|
92152
92152-0789 COLLAR |
92152-0789 |
from US $2.06 |
||
|
92200
|
92200
92200-1055 WASHER,8.5X20X2.3 |
92200-1055 |
from US $2.38 |
||
|
92210
|
92210
92210-0218 NUT,6MM |
92210-0218 |
from US $1.11 |
||
|
92210A
|
92210A
92210-1081 NUT |
92210-1081 |
from US $9.20 |
