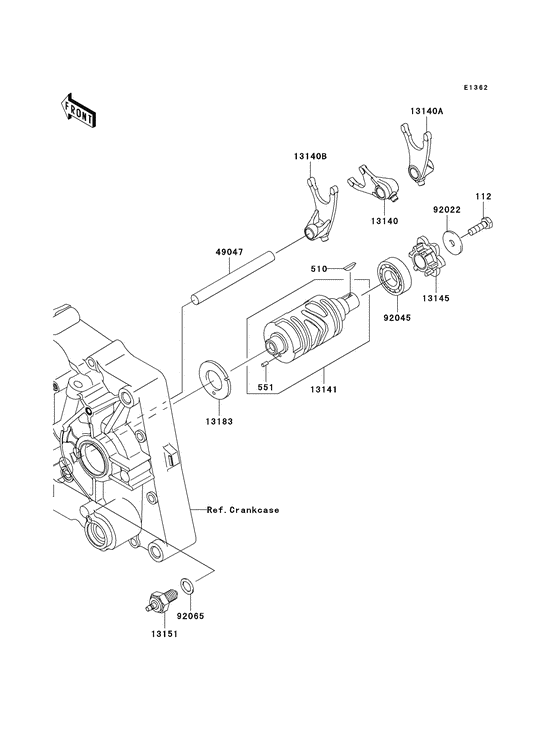

Gear change drum/shift fork Diagram Kawasaki KLX140 KLX140L
- Year
- 2009
- Model code
- KLX140B9FA
- Sales region
- USA
- Engine Capacity
- 140
- Model
- KLX140L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112CA0620 BOLT-UPSETBolt-upset,6x20; |
112CA0620 |
from US $0.95 |
||
|
510
|
510
510A3200 WOODRUFF KEY |
510A3200 |
from US $3.40 |
||
|
551
|
551
551A0306 PIN,DOWEL,3X6Pin-dowel,3x6; |
551A0306 |
from US $1.80 |
||
|
13140
|
13140
13140-0051 FORK-SHIFT,INPUTFork-shift,input; |
13140-0051 |
from US $30.07 |
||
|
13140A
|
13140A
13140-0052 FORK-SHIFT,OUTPUT RHFork-shift,output rh; |
13140-0052 |
from US $30.07 |
||
|
13140B
|
13140B
13140-0053 FORK-SHIFT,OUTPUT LHFork-shift,output lh; |
13140-0053 |
from US $30.07 |
||
|
13141
|
13141
13141-0047 DRUM-CHANGE |
13141-0047 |
from US $68.37 |
||
| replacement | |||||
|
13141
|
13141
13141-0572 DRUM-CHANGE |
13141-0572 |
from US $57.45 |
||
|
13145
|
13145
13145-1084 CAM-CHANGE DRUM |
13145-1084 |
from US $29.47 |
||
|
13151
|
13151
13151-1099 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-1099 |
from US $3.48 |
||
|
13183
|
13183
13183-1066 PLATEPlate,change; |
13183-1066 |
from US $11.72 |
||
|
49047
|
49047
49047-1094 ROD-SHIFT |
49047-1094 |
from US $5.54 |
||
|
92022
|
92022
92022-1690 WASHERWasher,6.5x24x2; |
92022-1690 |
from US $2.53 |
||
|
92045
|
92045
92045-0126 BEARING-BALL,17X35X10Bearing-ball,17x35x10; |
92045-0126 |
from US $18.06 |
||
|
92065
|
92065
92065-058 GASKETGasket,10.5x16x1; |
92065-058 |
from US $3.37 |
||
