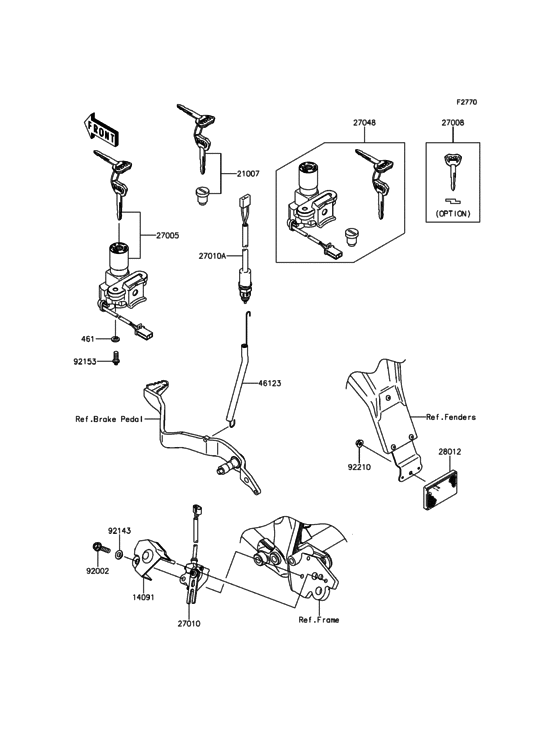

Ignition Switch Diagram Kawasaki KLX150 KLX150L
- Year
- 2014
- Model code
- KLX150EEF
- Sales region
- Europe (General)
- Engine Capacity
- 150
- Model
- KLX150L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.42 |
||
|
14091
|
14091
14091-1553 COVER,SIDE STAND SWIT |
14091-1553 |
from US $4.54 |
||
|
21007
|
21007
21007-5074 ROTOR,LOCK,TANK CAP |
21007-5074 |
from US $62.23 |
||
|
27005
|
27005
27005-0582 スイツチアツシイグニシヨン |
27005-0582 |
US $157.85 |
||
|
27008
|
27008
27008-0559 KEY-LOCK,BLANKブランク; ロツク |
27008-0559 |
from US $11.19 |
||
|
27010
|
27010
27010-0097 SWITCH,SIDE STAND |
27010-0097 |
from US $75.45 |
||
|
27010A
|
27010A
27010-0117 スイツチリヤ ブレーキ |
27010-0117 |
US $29.64 |
||
|
27048
|
27048
27048-5041 Switch-Assy |
27048-5041 |
US $237.69 |
||
|
28012
|
28012
28012-1088 REFLECTOR-REFLEX |
28012-1088 |
from US $13.58 |
||
|
46123
|
46123
46123-0007 SPRING-COMP |
46123-0007 |
from US $4.98 |
||
|
92002
|
92002
92002-1582 BOLT,6X25 |
92002-1582 |
from US $2.58 |
||
|
92143
|
92143
92143-1331 COLLAR |
92143-1331 |
from US $2.11 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.06 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.20 |
