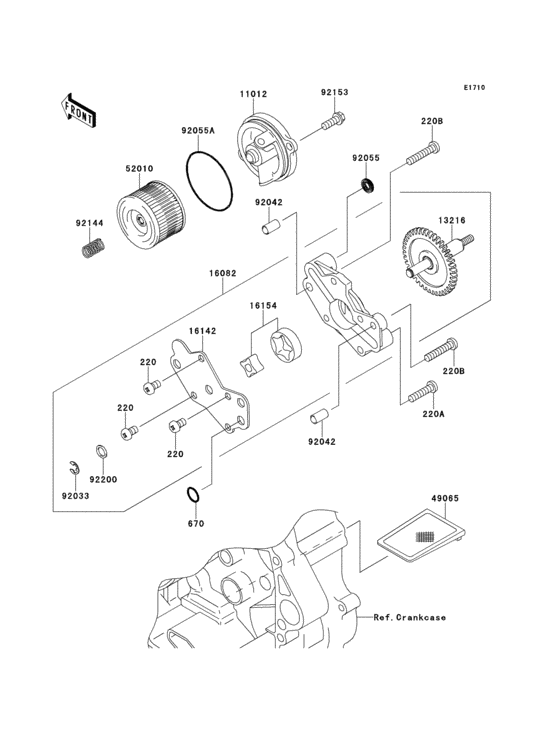

Oil pump Diagram Kawasaki KLX250 KLX250
- Year
- 2009
- Model code
- KLX250S9F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- KLX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10 |
220AA0610 |
from US $0.95 |
||
|
220A
|
220A
220AA0625 SCREW-PAN-CROSS,6X25 |
220AA0625 |
from US $0.95 |
||
|
220B
|
220B
220AA0630 SCREW-PAN HEAD,6X30 |
220AA0630 |
from US $1.25 |
||
|
670
|
670
670D2010 O RING |
670D2010 |
from US $2.52 |
||
|
11012
|
11012
11012-1915 CAP,OIL FILTER |
11012-1915 |
from US $39.64 |
||
|
13216
|
13216
13216-1193
Gear-Comp,Oil Pump
|
13216-1193 |
— | ||
| replacement | |||||
|
13216
|
13216
13216-0878 Gear-Comp,Oil Pump |
13216-0878 |
from US $91.56 |
||
|
16082
|
16082
16082-1163
Pump-assy-oil
|
16082-1163 |
— | ||
| replacement | |||||
|
16082
|
16082
16082-0727 Pump-assy-oil |
16082-0727 |
from US $138.23 |
||
|
16142
|
16142
16142-1123 COVER-PUMP |
16142-1123 |
from US $29.17 |
||
| replacement | |||||
|
16142
|
16142
16142-0713 COVER-PUMP |
16142-0713 |
from US $29.17 |
||
|
16154
|
16154
16154-1130
ROTOR-PUMP
|
16154-1130 |
— | ||
| replacement | |||||
|
16154
|
16154
16154-0714 ROTOR-PUMP |
16154-0714 |
from US $25.13 |
||
|
49065
|
49065
49065-1058 FILTER-OIL |
49065-1058 |
from US $11.88 |
||
|
52010
|
52010
52010-1053 ELEMENT-OIL FILTER |
52010-1053 |
from US $10.51 |
||
|
92033
|
92033
92033-1327 RING-SNAP,6MM |
92033-1327 |
from US $2.69 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92055
|
92055
92055-074 O RING |
92055-074 |
from US $5.39 |
||
|
92055A
|
92055A
92055-1577 O-RING (52.6X2.4)52.6X2.4 |
92055-1577 |
from US $3.37 |
||
|
92144
|
92144
92144-1761 SPRING |
92144-1761 |
from US $3.73 |
||
|
92153
|
92153
92153-0695 BOLT,6X16 |
92153-0695 |
from US $1.27 |
||
|
92200
|
92200
92200-1591 WASHER,10.2X14.5X1.0 |
92200-1591 |
from US $3.01 |
||
