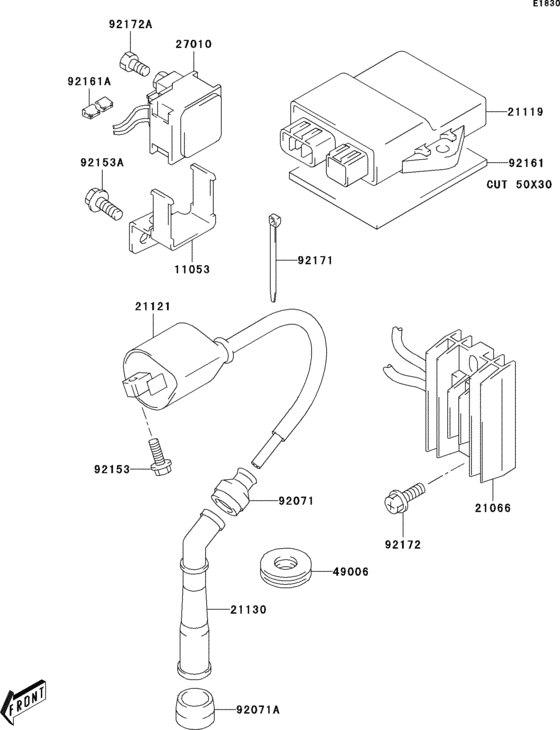

Ignition System Diagram Kawasaki KLX400 KLX400SR
- Year
- 2004
- Model code
- KLX400-A2
- Sales region
- Canada
- Engine Capacity
- 400
- Frame
- JSKSK43B 42100001 - 999999
- Model
- KLX400SR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21121
|
21121
21121-S006 COIL-IGNITION |
21121-S006 |
US $101.32 |
||
|
21130
|
21130
21130-S006 Cap-spark plug |
21130-S006 |
US $40.72 |
||
|
49006
|
49006
49006-S020 BOOT,SPARK PLUG CAP |
49006-S020 |
US $7.29 |
||
|
92071
|
92071
92071-S004 GROMMET,HIGH TENSION |
92071-S004 |
from US $2.22 |
||
|
92071A
|
92071A
92071-S014 GROMMET,SPARK PLUG CA |
92071-S014 |
US $7.33 |
||
|
92153
|
92153
92153-S563 BOLT |
92153-S563 |
US $2.48 |
||
|
92153A
|
92153A
92153-S486 BOLT |
92153-S486 |
from US $0.94 |
||
|
92161
|
92161
92161-S014 DAMPER,170X95X3.0 |
92161-S014 |
from US $4.14 |
||
|
92171
|
92171
92171-S015 CLAMP,L:145 |
92171-S015 |
from US $2.59 |
||
|
92172
|
92172
92172-S344 SCREW |
92172-S344 |
US $2.48 |
||
|
92172A
|
92172A
92172-S035 SCREW |
92172-S035 |
from US $1.10 |
