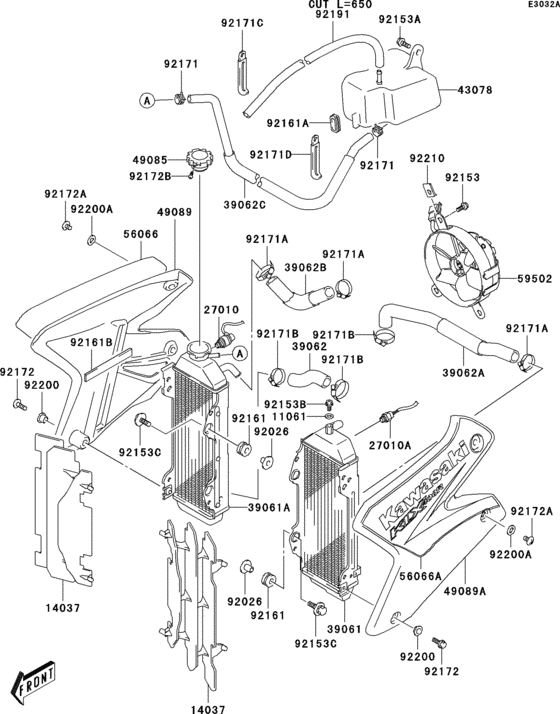

Radiator(klx400-a2) Diagram Kawasaki KLX400 KLX400SR
- Year
- 2004
- Model code
- KLX400-A2
- Sales region
- Canada
- Engine Capacity
- 400
- Frame
- JSKSK43B 42100001 - 999999
- Model
- KLX400SR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S002 GASKET |
11061-S002 |
from US $1.58 |
||
|
92153
|
92153
92153-3758 BOLT |
92153-3758 |
from US $22.89 |
||
|
92153A
|
92153A
92153-S486 BOLT |
92153-S486 |
from US $0.94 |
||
|
92171
|
92171
92171-S002 CLAMP |
92171-S002 |
from US $1.58 |
||
|
92171A
|
92171A
92171-S008 CLAMP |
92171-S008 |
from US $3.96 |
||
|
92171B
|
92171B
92171-S088 CLAMP,RADIATOR HOSE |
92171-S088 |
US $125.80 |
||
|
92171D
|
92171D
92171-S132 CLAMP,OIL HOSE NO.2 |
92171-S132 |
from US $2.22 |
||
|
92172
|
92172
92172-S296 SCREW |
92172-S296 |
from US $0.94 |
||
|
92191
|
92191
92191-S088-500 TUBE,OVERFLOW,M.R.ORA |
92191-S088-500 |
US $21.69 |
