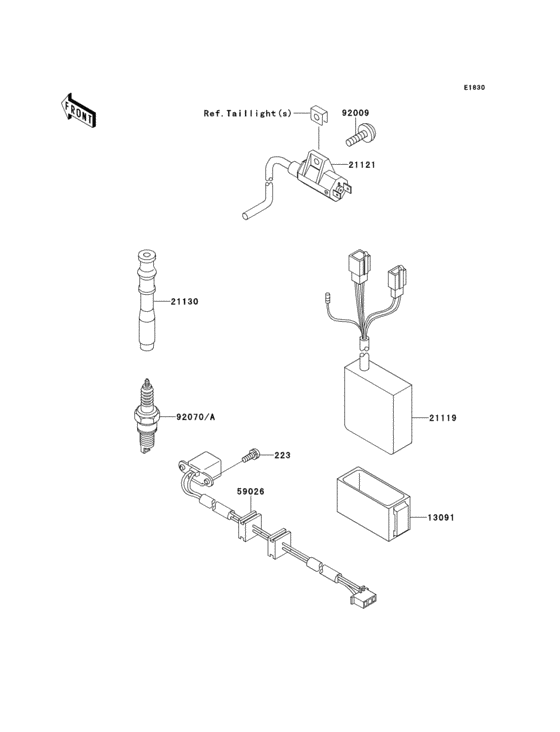

Ignition System Diagram Kawasaki KLX650 KLX650R
- Year
- 1996
- Colour
- Lime Green (7F)
- Model code
- KLX650-D1
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- KLX650R
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0514
SCREW-PAN-WS-CROS,5X1
|
223B0514 |
— | ||
| replacement | |||||
|
223
|
223
223AA0514 SCREW-PAN-WS-CROS,5X1 |
223AA0514 |
from US $0.95 |
||
|
13091
|
13091
13091-1271 HOLDER,IGNITER |
13091-1271 |
from US $14.26 |
||
|
21119
|
21119
21119-1361 IGNITER |
21119-1361 |
US $498.46 |
||
|
21121
|
21121
21121-1152 COIL-IGNITION |
21121-1152 |
from US $138.23 |
||
|
21130
|
21130
21130-1065 Cap-spark plug |
21130-1065 |
from US $29.62 |
||
|
59026
|
59026
59026-1124 COIL-PULSING |
59026-1124 |
US $126.50 |
||
|
92009
|
92009
92009-1111 SCREW,6X18 |
92009-1111 |
from US $3.33 |
||
|
92070
|
92070
92070-1065 Plug-spark,dpr8ea-9 |
92070-1065 |
US $7.44 |
||
