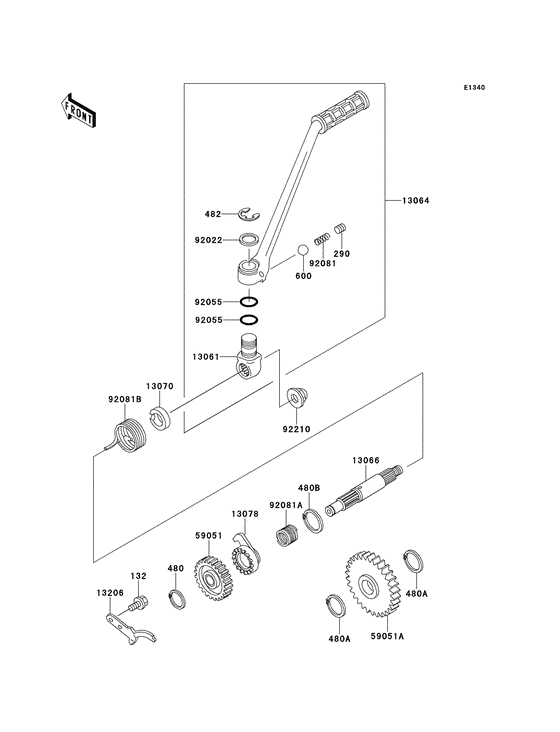

Kickstarter mechanism Diagram Kawasaki KMX125
- Year
- 2000
- Model code
- KMX125-A13
- Sales region
- USA
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0614
BOLT-FLANGED-SMALL,6X
|
132G0614 |
— | ||
| replacement | |||||
|
132
|
132
132BA0614 BOLT-FLANGED-SMALL,6X |
132BA0614 |
from US $0.76 |
||
|
290
|
290
290Q0808 SCREW,8X8Screw-set-socket,8x8; |
290Q0808 |
from US $2.58 |
||
|
480
|
480
480J1200 CIRCLIP 12MMCirclip-type-c,12mm; |
480J1200 |
from US $0.82 |
||
|
480A
|
480A
480J1500 CIRCLIP 15MMCirclip-type-c,15mm; |
480J1500 |
from US $0.91 |
||
|
480B
|
480B
480J1600 CIRCLIP 16MMCirclip-type-c,16mm; |
480J1600 |
from US $1.27 |
||
|
482
|
482
482J0100 CIRCLIP 10MMCirclip-type-e,10mm; |
482J0100 |
from US $0.91 |
||
|
600
|
600
600A0800 BALL,6.35MMBall-steel,1/4"; |
600A0800 |
from US $0.72 |
||
|
13061
|
13061
13061-1047
BOSS,KICK PEDAL
Boss,kick pedal; |
13061-1047 |
— | ||
|
13064
|
13064
13064-1126 LEVER-ASSY-KICKLever-assy-kick,pedal; |
13064-1126 |
US $118.32 |
||
| replacement | |||||
|
13064
|
13064
13064-1214 LEVER-ASSY-KICKLever-assy-kick,pedal; |
13064-1214 |
from US $111.89 |
||
|
13066
|
13066
13066-1066 SHAFT-KICK |
13066-1066 |
from US $72.13 |
||
|
13070
|
13070
13070-1034 GUIDE,KICK SPRINGGuide,kick spring; |
13070-1034 |
from US $5.60 |
||
|
13078
|
13078
13078-1004 RATCHET |
13078-1004 |
from US $36.44 |
||
|
13206
|
13206
13206-1057 GUIDE-KICK |
13206-1057 |
from US $8.01 |
||
|
59051
|
59051
59051-1164 GEAR-SPUR,KICKSTARTERGear-spur,kickstarter,29t; |
59051-1164 |
from US $61.68 |
||
|
59051A
|
59051A
59051-1236 GEAR-SPUR,KICKSTARTERGear,kickstarter,35t; |
59051-1236 |
US $74.46 |
||
| replacement | |||||
|
59051A
|
59051A
59051-0736 GEAR-SPUR,KICKSTARTERGear,kickstarter,35t; |
59051-0736 |
from US $61.68 |
||
|
92022
|
92022
92022-1019 WASHER,PLAINWasher,15.2x20x1; |
92022-1019 |
from US $2.87 |
||
|
92055
|
92055
92055-061 O RINGRing-o,10x1.5; |
92055-061 |
from US $2.72 |
||
|
92081
|
92081
92081-020 SPRING KICK PEDALSpring,kick pedal; |
92081-020 |
from US $2.52 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHETSpring,ratchet; |
92081-122 |
from US $4.98 |
||
|
92081B
|
92081B
92081-1434 SPRING,KICKSpring,return; |
92081-1434 |
from US $8.92 |
||
|
92210
|
92210
92210-1081 NUTNut,lock,flanged,10mm; |
92210-1081 |
from US $6.96 |
||
