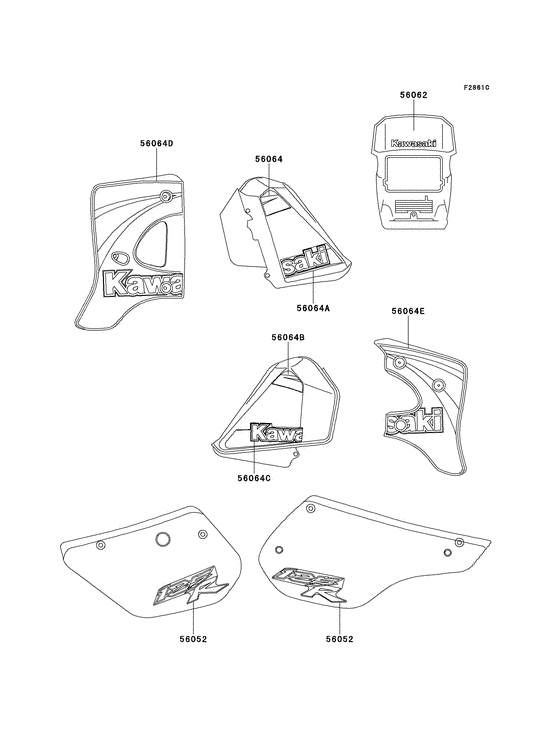

Decals (Ebony; mx125-a14) Diagram Kawasaki KMX125
- Year
- 2001
- Model code
- KMX125-A14
- Sales region
- USA
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-1336
MARK,SIDE COVER,125R
Mark,side cover,125r; |
56052-1336 |
— | ||
|
56062
|
56062
56062-1446
Pattern,head Lamp Cov
Pattern,head lamp cover; |
56062-1446 |
— | ||
|
56064
|
56064
56064-1178
PATTERN,FUEL TANK,UPP
Pattern,fuel tank,upp,lh; |
56064-1178 |
— | ||
|
56064A
|
56064A
56064-1179
PATTERN,FUEL TANK,LWR
Pattern,fuel tank,lwr,lh; |
56064-1179 |
— | ||
|
56064B
|
56064B
56064-1180
PATTERN,FUEL TANK,UPP
Pattern,fuel tank,upp,rh; |
56064-1180 |
— | ||
|
56064C
|
56064C
56064-1181
PATTERN,FUEL TANK,LWR
Pattern,fuel tank,lwr,rh; |
56064-1181 |
— | ||
|
56064D
|
56064D
56064-1182
PATTERN,SHROUD,LH
Pattern,shroud,lh; |
56064-1182 |
— | ||
|
56064E
|
56064E
56064-1183
PATTERN,SHROUD,RH
Pattern,shroud,rh; |
56064-1183 |
— |
