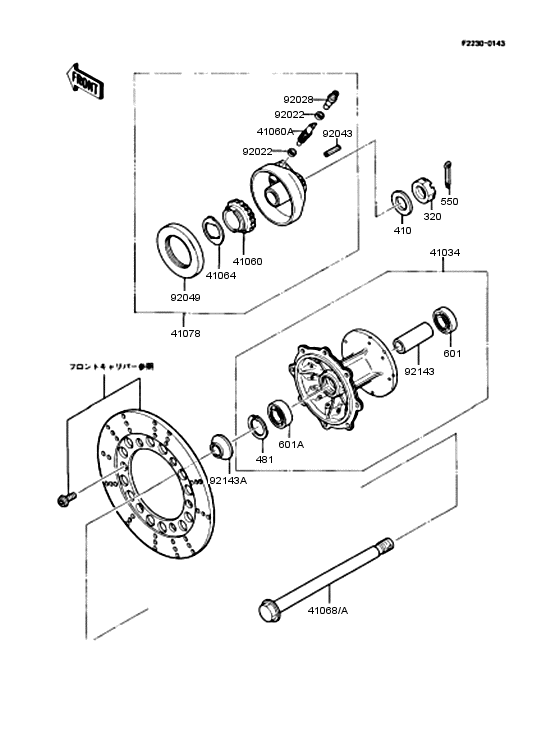

Front hub Diagram Kawasaki KMX125
- Year
- 1988
- Colour
- 01
- Model code
- KMX125-A3
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- MX125A 008001 - 010200
- Engine
- MX125AE 015001 - 019900
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
320
|
320
320G1200 Nut-castleミゾツキ ナツト |
320G1200 |
US $1.43 |
||
| replacements | |||||
|
320
|
320
92210-7501 NUT,12MMミゾツキ ナツト |
92210-7501 |
from US $1.90 |
||
|
320
|
320
320BA1200 NUT,12MMミゾツキ ナツト |
320BA1200 |
from US $1.43 |
||
|
410
|
410
410B1200 WASHER PLAIN 12MMヒラザガネ(コガタマル)，12MM |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12ヒラザガネ(コガタマル)，12MM |
410AA1200 |
from US $0.95 |
||
|
481
|
481
481J3500 CIRCLIP,35MMトメワ(アナヨウ)，35MM |
481J3500 |
from US $1.43 |
||
|
550
|
550
550D3025 PIN-COTTER,3.0X25ワリ ピン，3.0X25 |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25ワリ ピン，3.0X25 |
550AA3025 |
from US $0.95 |
||
|
601
|
601
601B6201UG BEARING,BALLボ-ル ベアリング，#6201UG |
601B6201UG |
US $14.29 |
||
| replacement | |||||
|
601
|
601
601B6201U BEARING,BALLボ-ル ベアリング，#6201UG |
601B6201U |
from US $16 |
||
|
601A
|
601A
601B6202UG BEARING,BALL,#6202UC3ボ-ル ベアリング，#6202UG |
601B6202UG |
from US $9.82 |
||
| replacement | |||||
|
601A
|
601A
601B6202U BEARING,BALL,#6202UC3ボ-ル ベアリング，#6202UG |
601B6202U |
from US $14.57 |
||
|
41034
|
41034
41034-1147 DRUM-ASSY,FRONT BRAKEドラムアツシ，フロント ブレ-キ |
41034-1147 |
from US $333.96 |
||
|
41060
|
41060
41060-1101 GEAR-METER SCREW,24Tギヤ(メ-タスクリユ-)，24T |
41060-1101 |
from US $25.28 |
||
|
41060A
|
41060A
41060-1102 GEAR-METER SCREW,8Tギヤ(メ-タスクリユ-)，8T |
41060-1102 |
from US $13.73 |
||
|
41064
|
41064
41064-1051 RECEIVER-SPEEDOMETERレシ-バ(スピ-ドメ-タ) |
41064-1051 |
from US $8.55 |
||
|
41068
|
41068
41068-1227 AXLE,FRアクスル，FR |
41068-1227 |
from US $35.93 |
||
|
41068A
|
41068A
41068-1275 AXLE,FRアクスル，FR |
41068-1275 |
US $37.25 |
||
|
41078
|
41078
41078-1063 CASE-ASSY-METER GEARケ-スアツシ(メ-タギヤ) |
41078-1063 |
US $108.91 |
||
|
92022
|
92022
41063001 WASHER THRST SPD PINIワツシヤ- A，5.1X9X0.4 |
41063001 |
from US $3.17 |
||
|
92028
|
92028
92028-1066 BUSHING,SPEEDOMET CBLブツシング，スピ-ドメ-タ |
92028-1066 |
from US $7.29 |
||
|
92043
|
92043
41082001 PIN,SPRINGピン，スプリング |
41082001 |
from US $3.01 |
||
|
92049
|
92049
92049-1263 SEAL-OIL,PJN40556シ-ル(オイル)，PJN40556 |
92049-1263 |
from US $12.20 |
||
|
92143
|
92143
92143-1012 COLLAR,12.2X19X70カラ-，12.2X9X70 |
92143-1012 |
US $12.67 |
||
|
92143A
|
92143A
92143-1013 COLLAR,L=25カラ-，L=25 |
92143-1013 |
US $19.17 |
||
