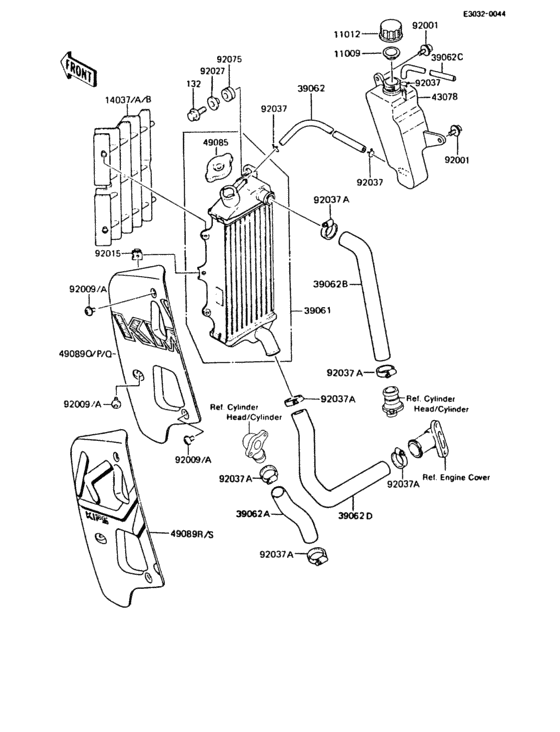

Radiator(1/2) Diagram Kawasaki KMX125
- Year
- 1989
- Colour
- Blue 24 (DB)
- Model code
- KMX125-A4
- Sales region
- Switzerland
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0620
BOLT,6X20
|
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANK |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.14 |
||
|
14037
|
14037
14037-1077-BV
Screen,radiator,blue
|
14037-1077-BV |
— | ||
|
39061
|
39061
39061-1090 Radiator-assy |
39061-1090 |
from US $515.95 |
||
|
39062
|
39062
39062-1086
HOSE-COOLING
|
39062-1086 |
— | ||
|
39062A
|
39062A
39062-1189 HOSE-COOLING,PUMP-CYL |
39062-1189 |
US $19.17 |
||
|
39062B
|
39062B
39062-1190 HOSE-COOLING,HEAD-RAD |
39062-1190 |
from US $21.11 |
||
|
39062C
|
39062C
39062-1208 HOSE-COOLING,5.5X10.5 |
39062-1208 |
from US $26.06 |
||
| replacement | |||||
|
39062C
|
39062C
39062-0080 HOSE-COOLING,5.5X10.5 |
39062-0080 |
from US $25.50 |
||
|
39062D
|
39062D
39062-1275 HOSE-COOLING,RADIATOR |
39062-1275 |
from US $28.35 |
||
|
43078
|
43078
43078-1076
RESERVOIR
|
43078-1076 |
— | ||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
49089Q
|
49089Q
49089-5081-BV Shroud-engine,lh,blue |
49089-5081-BV |
US $111 |
||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92009
|
92009
92009-1286 SCREW,6X10 |
92009-1286 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1515 SCREW,6X8,BLACK |
92009-1515 |
US $2.03 |
||
| replacement | |||||
|
92009A
|
92009A
92009-1661 SCREW |
92009-1661 |
from US $2.69 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92027
|
92027
92027-251
COLLAR
|
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1589 CLAMP,COOLING HOSE |
92037-1589 |
from US $12.04 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENR |
92075-209 |
from US $3.73 |
||
