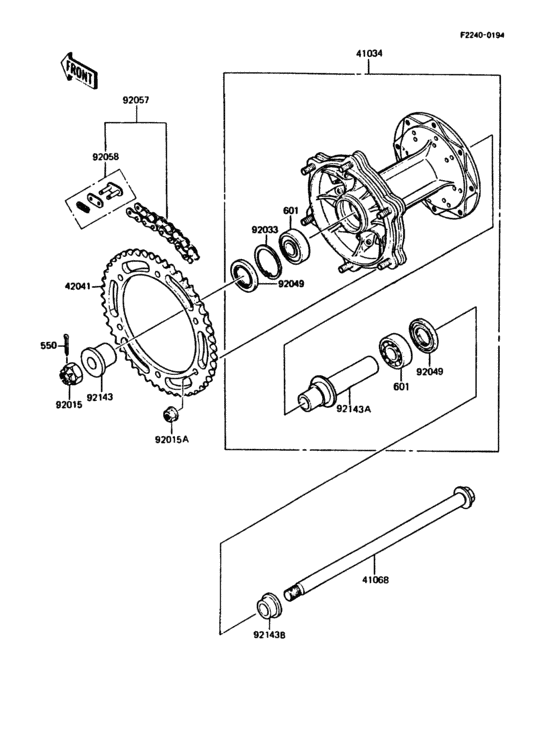

Rear hub Diagram Kawasaki KMX125
- Year
- 1989
- Colour
- Blue 24 (DB)
- Model code
- KMX125-A4
- Sales region
- Switzerland
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D3025 PIN-COTTER,3.0X25 |
550D3025 |
from US $0.27 |
||
| replacement | |||||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.95 |
||
|
601
|
601
601B6302UG BEARING-BALL |
601B6302UG |
US $22.43 |
||
| replacement | |||||
|
601
|
601
601B6302U BEARING-BALL |
601B6302U |
from US $22.89 |
||
|
41034
|
41034
41034-1149 DRUM-ASSY,REAR BRAKE |
41034-1149 |
from US $403.66 |
||
|
41068
|
41068
41068-1228 AXLE,RR |
41068-1228 |
US $57.15 |
||
|
42041
|
42041
42041-1244 SPROCKET-HUB,48T |
42041-1244 |
US $47.87 |
||
|
92015
|
92015
42045020 NUT,CASTLE,14MM |
42045020 |
US $8.41 |
||
| replacement | |||||
|
92015
|
92015
92015-1765 NUT,CASTLE,14MM |
92015-1765 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1668 NUT,FLANGED,LOCK,8MM |
92015-1668 |
from US $2.85 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MM |
92033-1041 |
from US $3.48 |
||
|
92049
|
92049
92049-1203 SEAL-OIL,BJNC2 25425 |
92049-1203 |
from US $13.45 |
||
|
92057
|
92057
92057-1217 CHAIN,DRIVE,EK428 SH- |
92057-1217 |
from US $94.25 |
||
|
92058
|
92058
92058-1058 JOINT-CHAIN |
92058-1058 |
from US $7.13 |
||
|
92143
|
92143
92143-1015 COLLAR,L=28 |
92143-1015 |
US $21.39 |
||
|
92143A
|
92143A
92143-1020 COLLAR,15.2X22X115 |
92143-1020 |
from US $12.04 |
||
|
92143B
|
92143B
92143-1021 COLLAR,L=13 |
92143-1021 |
from US $13.15 |
||
