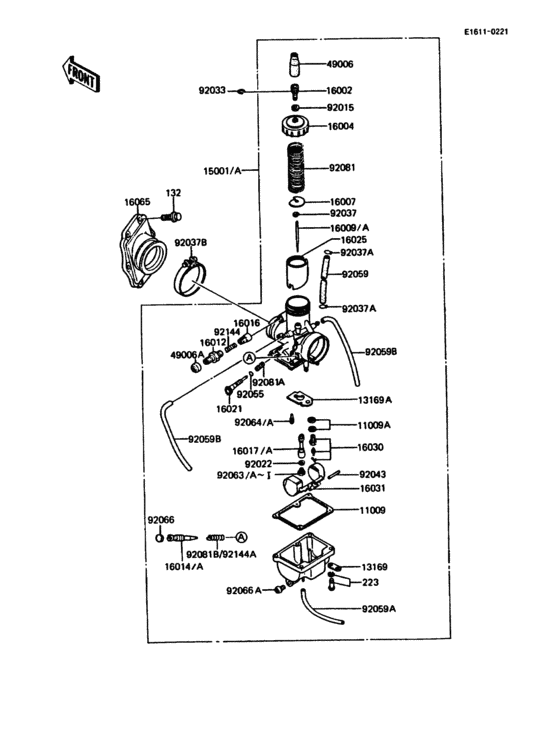

Carburetor(1/3) Diagram Kawasaki KMX125
- Year
- 1990
- Colour
- Blue 24 (DB)
- Model code
- KMX125-A5
- Sales region
- Switzerland
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0620
BOLT,6X20
|
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
223
|
223
223B0416 SCREW-PAN-WS-CROS |
223B0416 |
from US $0.45 |
||
| replacement | |||||
|
223
|
223
223AA0416 SCREW-PAN-WS-CROS |
223AA0416 |
from US $0.95 |
||
|
11009
|
11009
11009-1147 GASKET,FLOAT CHAMBER |
11009-1147 |
from US $7.29 |
||
|
11009A
|
11009A
16029-004 WASHER FLOAT VLV SEAT |
16029-004 |
from US $3.17 |
||
|
13169
|
13169
13169-1226
PLATE,TUBE
|
13169-1226 |
— | ||
| replacement | |||||
|
13169
|
13169
13169-1951 PLATE,TUBE |
13169-1951 |
from US $4.20 |
||
|
13169A
|
13169A
13169-1929
Plate,lock
|
13169-1929 |
— | ||
|
15001A
|
15001A
15001-1440
Carburetor-assy
|
15001-1440 |
— | ||
|
16002
|
16002
16002-011 CABLE ADJUSTER |
16002-011 |
from US $9.98 |
||
|
16004
|
16004
16004-025 CAP,MIXING CHAMBER |
16004-025 |
from US $22.89 |
||
|
16007
|
16007
16007-023 SPRING SEAT,THRTL VL |
16007-023 |
from US $7.44 |
||
|
16009A
|
16009A
16009-1368 Needle-jet,4fl46-2 |
16009-1368 |
US $29.17 |
||
|
16012
|
16012
16012-1058 CAP-STARTER PLUNGER |
16012-1058 |
from US $22.29 |
||
|
16014A
|
16014A
16014-1063
Screw-pilot air
|
16014-1063 |
— | ||
|
16016
|
16016
16016-002 PLUNGER-ENRICHNER |
16016-002 |
from US $21.09 |
||
|
16017A
|
16017A
16017-1349 JET-NDL,0-4 |
16017-1349 |
from US $31.10 |
||
|
16021
|
16021
16021-1042
SCREW-THROTTLE STOP
|
16021-1042 |
— | ||
|
16025
|
16025
16025-1129 VALVE-THROTTLE,CA2.0 |
16025-1129 |
US $104.27 |
||
|
16030
|
16030
16030-1053 VALVE-FLOAT,#2.0 |
16030-1053 |
from US $40.69 |
||
|
16031
|
16031
16031-1005 FLOAT |
16031-1005 |
from US $36.20 |
||
|
16065
|
16065
16065-1145 HOLDER-CARBURETOR |
16065-1145 |
from US $57.15 |
||
|
49006
|
49006
49006-1085 BOOT,CARBURETOR |
49006-1085 |
US $29.99 |
||
| replacement | |||||
|
49006
|
49006
49006-1169
BOOT,CARBURETOR
|
49006-1169 |
— | ||
|
49006A
|
49006A
49006-1203 BOOT |
49006-1203 |
from US $9.98 |
||
|
92015
|
92015
16003-006 NUT-CABLE ADJUST LOCK |
16003-006 |
from US $4.59 |
||
|
92022
|
92022
16034-001 WASHER MAIN JET |
16034-001 |
from US $3.01 |
||
|
92033
|
92033
92036-018 CIRCLIP |
92036-018 |
from US $2.53 |
||
|
92037
|
92037
16008-010 CIRCLIP |
16008-010 |
from US $6.65 |
||
|
92037A
|
92037A
92037-072 CLAMP-PIPE |
92037-072 |
from US $4.28 |
||
|
92037B
|
92037B
92037-1527
CLAMP,43MM
|
92037-1527 |
— | ||
| replacement | |||||
|
92037B
|
92037B
92170-1527 CLAMP,43MM |
92170-1527 |
from US $12.67 |
||
|
92043
|
92043
16032-003
PIN,FLOAT
|
16032-003 |
— | ||
| replacement | |||||
|
92043
|
92043
16032-008 PIN,FLOAT |
16032-008 |
from US $4.20 |
||
|
92055
|
92055
92055-044 RING-O |
92055-044 |
from US $6.81 |
||
|
92059
|
92059
92059-1023 HOSE,FUEL TAP DIAPHRA |
92059-1023 |
US $16.25 |
||
| replacement | |||||
|
92059
|
92059
92059-1507
チユ-ブ，5.3x10.5x450
|
92059-1507 |
— | ||
|
92059A
|
92059A
92059-1754 TUBE, 3X5X475 |
92059-1754 |
US $7.36 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1655
TUBE, 3X5X475
|
92059-1655 |
— | ||
|
92059B
|
92059B
92059-1755 TUBE,3X5X300 |
92059-1755 |
US $5.86 |
||
|
92063E
|
92063E
92063-1028 MAIN JET,#A102.5 |
92063-1028 |
from US $8.71 |
||
|
92063F
|
92063F
92063-1033 MAIN JET,#A100 |
92063-1033 |
from US $17.27 |
||
|
92063G
|
92063G
92063-1035 MAIN JET,#A97.5R |
92063-1035 |
from US $8.71 |
||
|
92063H
|
92063H
92063-1041 JET-MAIN,#A107.5R |
92063-1041 |
from US $10.73 |
||
|
92063I
|
92063I
92063-1042 MAIN JET,#A105R |
92063-1042 |
from US $10.30 |
||
|
92064A
|
92064A
92064-1043 JET-PILOT,#A20 |
92064-1043 |
from US $9.79 |
||
|
92066
|
92066
92066-1051 PLUG,PILOT SCREW |
92066-1051 |
from US $3.17 |
||
|
92066A
|
92066A
92066-1171 PLUG,DRAIN |
92066-1171 |
from US $10.30 |
||
|
92081
|
92081
16006-023 SPRING,THROTTLE VALV |
16006-023 |
from US $10.45 |
||
|
92081A
|
92081A
92081-1152 SPRING,THROTTLE ADJST |
92081-1152 |
from US $3.64 |
||
|
92144
|
92144
92144-1075 SPRING,STARTER PLUNGE |
92144-1075 |
from US $6.34 |
||
|
92144A
|
92144A
92144-1183 SPRING,THROTTLE STOP |
92144-1183 |
from US $2.95 |
||
