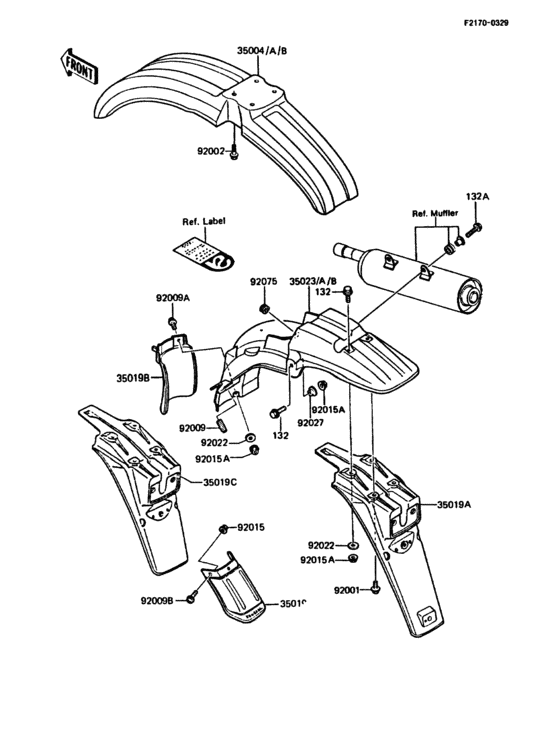

Fenders Diagram Kawasaki KMX125
- Year
- 1990
- Colour
- Blue 24 (DB)
- Model code
- KMX125-A5
- Sales region
- Switzerland
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0620
BOLT
|
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132E0630 BOLT-FLANGED-SMALL |
132E0630 |
from US $1.90 |
||
|
35004
|
35004
35004-1194-BV
Fender-front,blue 24
|
35004-1194-BV |
— | ||
|
35019
|
35019
35019-1002
FLAP,FRONT FENDER
|
35019-1002 |
— | ||
|
35019A
|
35019A
35019-1177
Flap,rear fender,rr
|
35019-1177 |
— | ||
| replacement | |||||
|
35019A
|
35019A
35019-1359
Flap,rear fender,rr
|
35019-1359 |
— | ||
|
35019B
|
35019B
35019-1180
FLAP,REAR FENDER,FR
|
35019-1180 |
— | ||
|
35023
|
35023
35023-1171-BV
Fender-rear
|
35023-1171-BV |
— | ||
|
92001
|
92001
92001-1771 BOLT,6X12 |
92001-1771 |
from US $2.53 |
||
|
92002
|
92002
92002-1187 BOLT,6X16 |
92002-1187 |
from US $1.27 |
||
| replacement | |||||
|
92002
|
92002
92001-1950 BOLT,6X16 |
92001-1950 |
from US $2.69 |
||
|
92009
|
92009
92009-1271
SCREW,6X12
|
92009-1271 |
— | ||
|
92009A
|
92009A
92009-1273 SCREW,6X16 |
92009-1273 |
from US $3.13 |
||
|
92009B
|
92009B
92009-1308
Screw,6x14
|
92009-1308 |
— | ||
| replacements | |||||
|
92009B
|
92009B
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92009B
|
92009B
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-1557
WASHER,6.5X20X1.6
|
92022-1557 |
— | ||
| replacements | |||||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-1794 COLLAR |
92027-1794 |
from US $2.85 |
||
|
92075
|
92075
92075-1028 DAMPER RUBBER |
92075-1028 |
from US $3.01 |
||
