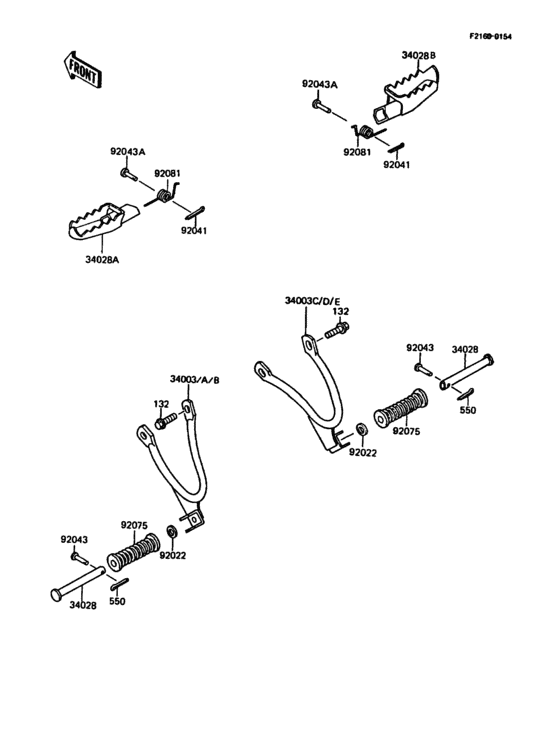

Footrests Diagram Kawasaki KMX125
- Year
- 1990
- Colour
- Blue 24 (DB)
- Model code
- KMX125-A5
- Sales region
- Switzerland
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0816 BOLT-FLANGED-SMALL,8X |
132E0816 |
from US $1.74 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
34003B
|
34003B
34003-1263-W1
Holder-step,rr,lh,blu
|
34003-1263-W1 |
— | ||
|
34003E
|
34003E
34003-1264-W1
Holder-step,rr,rh,blu
|
34003-1264-W1 |
— | ||
|
34028
|
34028
34028-009 BAR-RR FOOTREST (OPT) |
34028-009 |
from US $21.84 |
||
|
34028A
|
34028A
34028-1235 STEP,FR,LH |
34028-1235 |
from US $26.93 |
||
|
34028B
|
34028B
34028-1315 STEP,FR,RH |
34028-1315 |
from US $40.32 |
||
|
92022
|
92022
92022-1568 WASHER,20X30X2.3 |
92022-1568 |
from US $2.69 |
||
|
92041
|
92041
92041-1051 COTTER |
92041-1051 |
from US $3.01 |
||
|
92043
|
92043
92043-079 PIN-RR FTRST FIT (OPT |
92043-079 |
US $4.55 |
||
| replacement | |||||
|
92043
|
92043
92043-1464 PIN |
92043-1464 |
from US $5.39 |
||
|
92043A
|
92043A
92043-080 PIN-FOOTREST BAR FIT |
92043-080 |
from US $3.33 |
||
|
92075
|
92075
92076-020
RUBBER,REAR FOOTREST
|
92076-020 |
— | ||
| replacement | |||||
|
92075
|
92075
92076-024 RUBBER,REAR FOOTREST |
92076-024 |
from US $10.27 |
||
|
92081
|
92081
92081-1133 SPRING,FR FOOTREST |
92081-1133 |
from US $4.28 |
||
