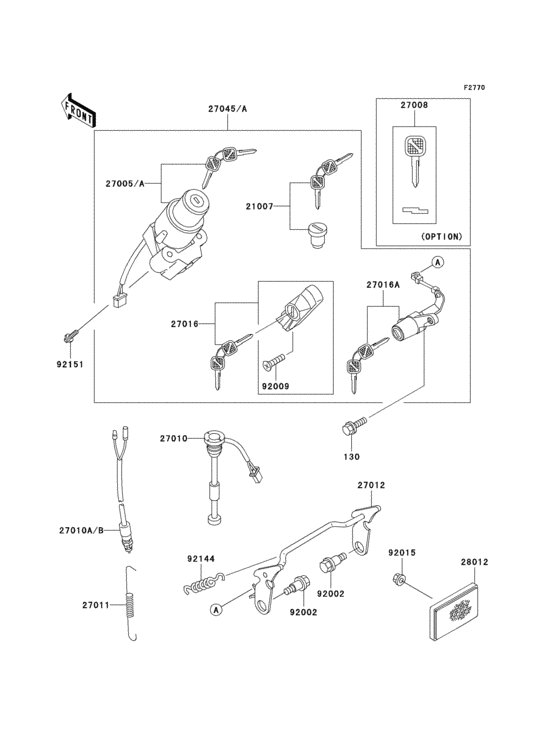

Ignition switch Diagram Kawasaki KMX125
- Year
- 2001
- Colour
- Blue 41 (TR)
- Model code
- KMX125-B11
- Sales region
- Germany
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0608 BOLT-FLANGED |
130H0608 |
from US $1.11 |
||
| replacement | |||||
|
130
|
130
130BA0608 BOLT-FLANGED |
130BA0608 |
from US $1 |
||
|
21007
|
21007
21007-5023 Rotor,lock,tank cap |
21007-5023 |
US $42.64 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005A
|
27005A
27005-1239
SWITCH-ASSY-IGNITION
|
27005-1239 |
— | ||
|
27008
|
27008
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1041 SWITCH,OIL LEVEL |
27010-1041 |
US $53.86 |
||
|
27010A
|
27010A
27010-1215 Switch,brake lamp |
27010-1215 |
US $18.41 |
||
| replacements | |||||
|
27010A
|
27010A
27010-1437 SWITCH,BRAKE LAMP |
27010-1437 |
from US $18.82 |
||
|
27010A
|
27010A
27010-1474 SWITCH,REAR BRAKE |
27010-1474 |
from US $21.84 |
||
|
27010A
|
27010A
27010-1019 SWITCH,REAR BRAKE |
27010-1019 |
from US $21.69 |
||
|
27011
|
27011
27011021 BRAKE SWITCH SPRING |
27011021 |
from US $3.33 |
||
|
27012
|
27012
27012-1389 HOOK,SEAT |
27012-1389 |
US $26.03 |
||
|
27016
|
27016
27016-5100
Lock-assy,helmet
|
27016-5100 |
— | ||
| replacements | |||||
|
27016
|
27016
27016-5285
ロツクアツシ，ヘルメツト
|
27016-5285 |
— | ||
|
27016
|
27016
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
|
27016A
|
27016A
27016-5116
Lock-assy,seat
|
27016-5116 |
— | ||
| replacement | |||||
|
27016A
|
27016A
27016-5115
LOCK-ASSY,SEAT
|
27016-5115 |
— | ||
|
27045A
|
27045A
27045-1073
Switch-assy
|
27045-1073 |
— | ||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92002
|
92002
92002-1596 BOLT,* |
92002-1596 |
US $7.44 |
||
|
92009
|
92009
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92144
|
92144
92144-1120
SPRING,SEAT LOCK RETU
|
92144-1120 |
— | ||
|
92151
|
92151
92151-1911 BOLT,TORX,6X16 |
92151-1911 |
from US $1.11 |
||
| replacement | |||||
|
92151
|
92151
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
