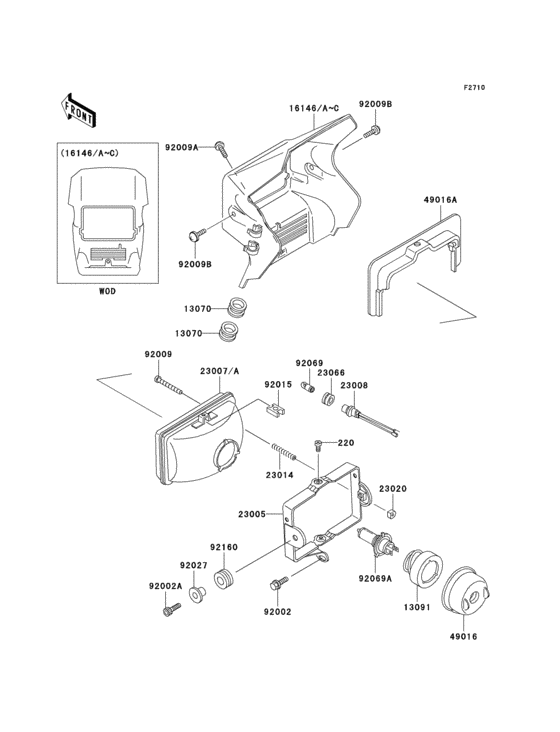

Headlight(s)(1/2) Diagram Kawasaki KMX125
- Year
- 2002
- Colour
- Blue 41 (TR)
- Model code
- KMX125-B12
- Sales region
- Germany
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0508
SCREW-PAN-CROS
|
220B0508 |
— | ||
| replacement | |||||
|
220
|
220
220AA0508 SCREW-PAN-CROS |
220AA0508 |
from US $0.78 |
||
|
13070
|
13070
13070-1107 GUIDE,BRAKE HOSE |
13070-1107 |
from US $6.81 |
||
|
16146A
|
16146A
16146-1068-RN
COVER-ASSY,HEAD LAMP,
|
16146-1068-RN |
— | ||
|
23005
|
23005
23005-1052 BODY-COMP-HEAD LAMP |
23005-1052 |
from US $22.44 |
||
|
23007A
|
23007A
23007-1269
Lens-comp,head lamp
|
23007-1269 |
— | ||
| replacement | |||||
|
23007A
|
23007A
23007-1268
Lens-comp,head lamp
|
23007-1268 |
— | ||
|
23008
|
23008
23008038 SOCKET,PARKING LAMP |
23008038 |
US $7.92 |
||
|
23014
|
23014
23014005 SPRING FOCUS ADJUST |
23014005 |
from US $3.01 |
||
|
23020
|
23020
23020018 NUT,4MM |
23020018 |
from US $3.17 |
||
|
23066
|
23066
23066008 DAMPER RUBBER |
23066008 |
from US $3.33 |
||
|
49016
|
49016
49016-1037 COVER-SEAL,SOCKET |
49016-1037 |
from US $8.08 |
||
|
49016A
|
49016A
49016-1101 COVER-SEAL,HEAD LAMP |
49016-1101 |
US $31.12 |
||
|
92002
|
92002
92002-1124 BOLT-UPSET-WP |
92002-1124 |
from US $0.85 |
||
| replacement | |||||
|
92002
|
92002
186AA0616 BOLT-UPSET-WP |
186AA0616 |
US $0.97 |
||
|
92002A
|
92002A
92002-1319 BOLT |
92002-1319 |
from US $4.28 |
||
|
92009
|
92009
92009-1065 SCREW,FOCUS ADJUSTING |
92009-1065 |
from US $3.01 |
||
|
92009A
|
92009A
92009-1287
Screw,6x14
|
92009-1287 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92172-0401 SCREW,6X14 |
92172-0401 |
from US $1.11 |
||
|
92009B
|
92009B
92009-1294 SCREW,6X8 |
92009-1294 |
from US $3.01 |
||
|
92015
|
92015
92015-1354 NUT,5MM |
92015-1354 |
from US $3.01 |
||
|
92027
|
92027
92027-1134 COLLAR,FUEL TANK FITT |
92027-1134 |
from US $8.15 |
||
|
92069
|
92069
92069-071 BULB,12V 4W |
92069-071 |
from US $3.48 |
||
|
92069A
|
92069A
92069-1002
BULB,12V 60/55W,H4
|
92069-1002 |
— | ||
| replacement | |||||
|
92069A
|
92069A
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 |
92069-0050 |
from US $18.68 |
||
|
92160
|
92160
92160-1007 DAMPER |
92160-1007 |
from US $4.09 |
||
