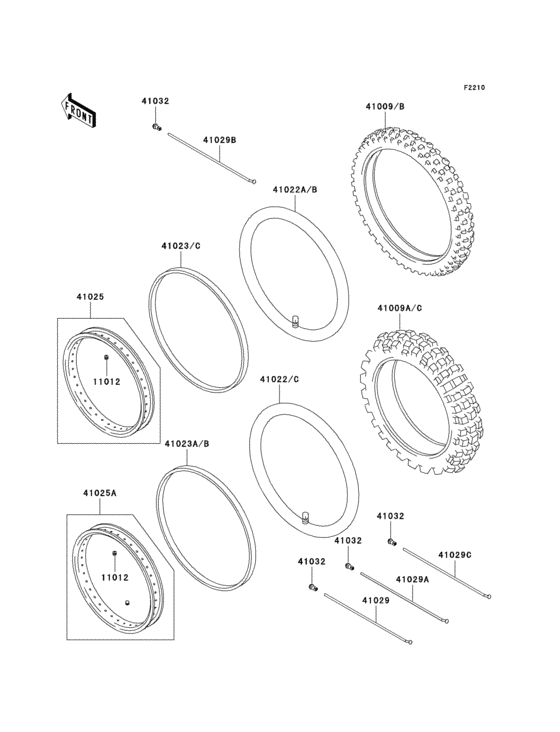

Tires Diagram Kawasaki KMX125
- Year
- 2002
- Colour
- Blue 41 (TR)
- Model code
- KMX125-B12
- Sales region
- Germany
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1670 CAP,BEAD STOPPER |
11012-1670 |
from US $2.06 |
||
|
41009B
|
41009B
41009-1359 TIRE,FR,2.75-21 45P,D |
41009-1359 |
US $168.26 |
||
| replacement | |||||
|
41009B
|
41009B
41009-1223 TIRE,FR,2.75-21 45P,D |
41009-1223 |
US $168.26 |
||
|
41009C
|
41009C
41009-1360 TIRE,RR,4.10-18 59P,D |
41009-1360 |
US $186.64 |
||
| replacement | |||||
|
41009C
|
41009C
41009-1224 TIRE,RR,4.10-18 59P,D |
41009-1224 |
US $186.64 |
||
|
41022B
|
41022B
41022-1228 TUBE-TIRE,2.75/3.00-2 |
41022-1228 |
from US $17.35 |
||
| replacement | |||||
|
41022B
|
41022B
41022-1118 TUBE-TIRE,80/100-21(D |
41022-1118 |
from US $46.08 |
||
|
41022C
|
41022C
41022-1229 TUBE-TIRE,3.25/3.50/4 |
41022-1229 |
from US $17.89 |
||
| replacement | |||||
|
41022C
|
41022C
41022-1004 Tube,3.50-18 trg |
41022-1004 |
from US $42.09 |
||
|
41023B
|
41023B
41023-1087
BAND-RIM,22-18
|
41023-1087 |
— | ||
|
41023C
|
41023C
41023-1132 BAND-RIM,2.75-21(IRC) |
41023-1132 |
from US $1.44 |
||
|
41025
|
41025
41025-1204
RIM,FR,1.60X21E7J
|
41025-1204 |
— | ||
|
41025A
|
41025A
41025-1205
RIM,RR,1.85X18E7J
|
41025-1205 |
— | ||
|
41029
|
41029
41029-1163 SPOKE-INNER,RR,LH |
41029-1163 |
US $3.96 |
||
|
41029A
|
41029A
41029-1164 SPOKE-INNER,RR,RH |
41029-1164 |
US $3.96 |
||
|
41029B
|
41029B
41029-1169 SPOKE-INNER,FR |
41029-1169 |
US $3.96 |
||
|
41029C
|
41029C
41029-1170 SPOKE-INNER |
41029-1170 |
US $3.96 |
||
|
41032
|
41032
41032-1078 NIPPLE-SPOKE |
41032-1078 |
from US $1.58 |
||
