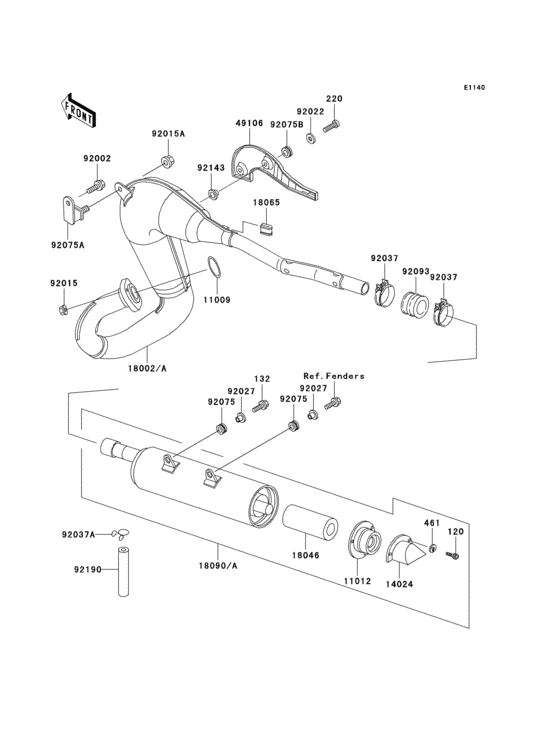

Muffler(s) Diagram Kawasaki KMX125
- Year
- 2002
- Model code
- KMX125-B12
- Sales region
- Europe (General)
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0510 BOLT-SOCKET,5X10 |
120CB0510 |
from US $0.95 |
||
|
132
|
132
92002-1607 BOLT |
92002-1607 |
from US $2.85 |
||
|
220
|
220
220AB0614 SCREW-PAN-CROSS,6X14 |
220AB0614 |
from US $0.95 |
||
|
461
|
461
461DB0500 WASHER-SPRING |
461DB0500 |
from US $0.79 |
||
|
11009
|
11009
11009-1992 GASKET,EXHAUST PIPE |
11009-1992 |
from US $6.34 |
||
|
11012
|
11012
11012-1527 CAP |
11012-1527 |
US $21.84 |
||
|
14024
|
14024
14024-1365 COVER |
14024-1365 |
US $20.91 |
||
|
18002A
|
18002A
18002-1708
Body-comp-muffler
|
18002-1708 |
— | ||
|
18046
|
18046
18046-1066 WOOL,MUFFLER |
18046-1066 |
from US $17.71 |
||
|
18065
|
18065
18065007 INSULATOR |
18065007 |
US $4.12 |
||
|
18090A
|
18090A
18090-1886
BODY-COMP-MUFFLER
|
18090-1886 |
— | ||
|
49106
|
49106
49106-1099 COVER-MUFFLER |
49106-1099 |
from US $32.31 |
||
|
92002
|
92002
92002-1242 BOLT |
92002-1242 |
from US $2.85 |
||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
92022-1344 WASHER,7X16X1.2 |
92022-1344 |
from US $2.53 |
||
|
92027
|
92027
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92037
|
92037
92037-1129 CLAMP,CARBURETOR,40MM |
92037-1129 |
from US $6.49 |
||
|
92037A
|
92037A
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92075
|
92075
92075-1123 DAMPER, HEAD LMP FITT |
92075-1123 |
from US $3.17 |
||
|
92075A
|
92075A
92075-1891 DAMPER,MUFFLER |
92075-1891 |
from US $20.75 |
||
|
92075B
|
92075B
92075-1947 DAMPER |
92075-1947 |
from US $5.07 |
||
|
92093
|
92093
92093-1012 SEAL,EXHAUST PIPE |
92093-1012 |
from US $23.64 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92190
|
92190
92190-1228
TUBE,5X10X668,BLUE
|
92190-1228 |
— |
