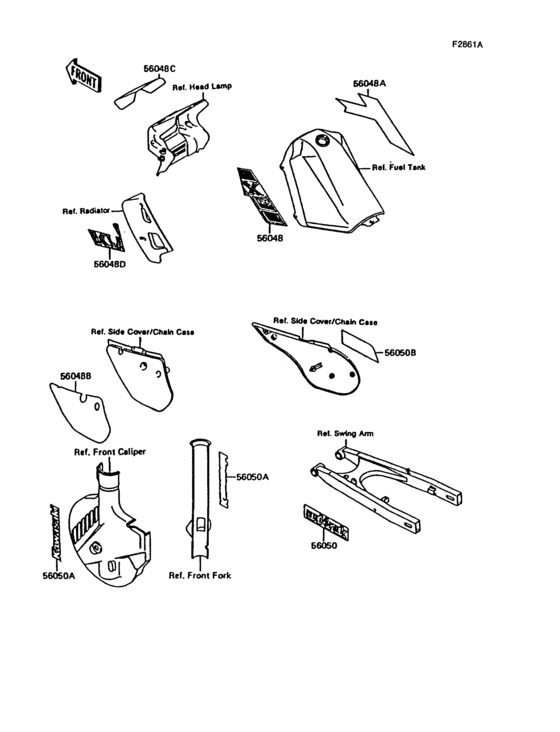

Decals(ebony)(kmx125-b6) Diagram Kawasaki KMX125
- Year
- 1991
- Colour
- Blue 24 (DB)
- Model code
- KMX125-B6
- Sales region
- France
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56048
|
56048
56048-1833 Pattern,fuel tank,lh,for ebony |
56048-1833 |
US $33.66 |
||
|
56048A
|
56048A
56048-1834 Pattern,fuel tank,rh,for ebony |
56048-1834 |
US $33.66 |
||
|
56048B
|
56048B
56048-1835 Pattern,s.cover,lh,for ebony |
56048-1835 |
US $57.30 |
||
|
56048C
|
56048C
56048-1836 Pattern,h.lamp cover,for ebony |
56048-1836 |
US $46.23 |
||
|
56048D
|
56048D
56048-1837 Pattern,shroud,lh,for ebony |
56048-1837 |
US $37.25 |
||
|
56050
|
56050
56050-1260 Mark,swing arm,lh,for ebony |
56050-1260 |
US $25.28 |
||
|
56050A
|
56050A
56050-1262 Mark,kawasaki,for ebony(red) |
56050-1262 |
US $20.50 |
||
|
56050B
|
56050B
56050-1281 Mark,kips,for ebony |
56050-1281 |
US $16.16 |
