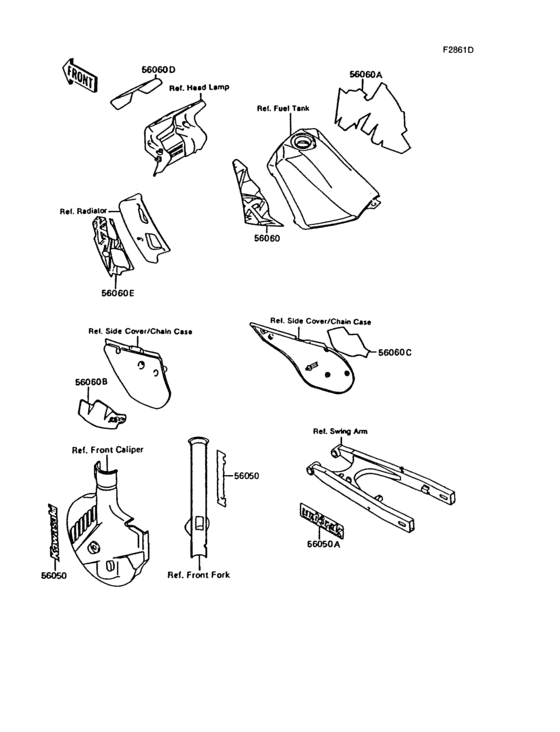

Decals(green)(kmx125-b7) Diagram Kawasaki KMX125
- Year
- 1992
- Colour
- Ebony (H8)
- Model code
- KMX125-B7
- Sales region
- France
- Engine Capacity
- 125
- Model
- KMX125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56050
|
56050
56050-1259 MARK,KAWASAKI,FOR GRE |
56050-1259 |
US $19.17 |
||
|
56050A
|
56050A
56050-1669
MARK,SWING ARM,UNI-TR
|
56050-1669 |
— | ||
|
56060
|
56060
56060-1150 Pattern,fuel tank,lh |
56060-1150 |
US $37.10 |
||
|
56060A
|
56060A
56060-1151 Pattern,fuel tank,rh |
56060-1151 |
US $37.10 |
||
|
56060B
|
56060B
56060-1152 PATTERN,SIDE COVER,LH |
56060-1152 |
US $31.21 |
||
|
56060C
|
56060C
56060-1153 PATTERN,SIDE COVER,RH |
56060-1153 |
US $31.21 |
||
|
56060D
|
56060D
56060-1154 Pattern,head Lamp Cov |
56060-1154 |
US $20.12 |
||
|
56060E
|
56060E
56060-1155 PATTERN,SHROUD,LH |
56060-1155 |
US $67.25 |
