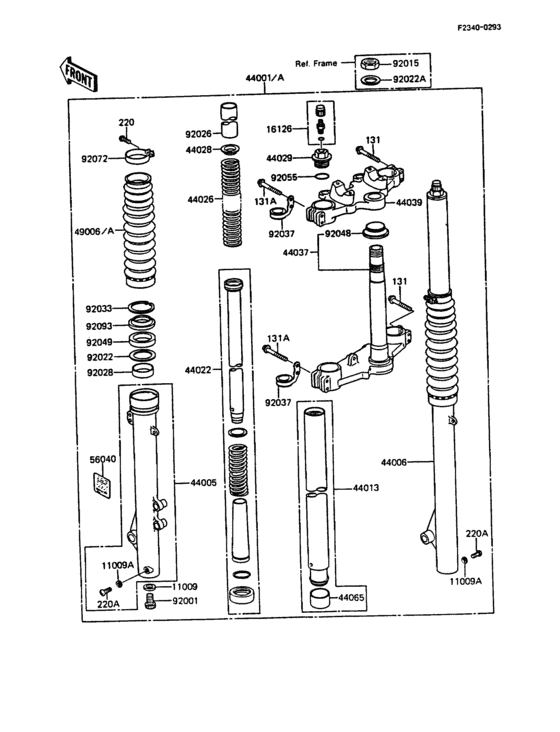

Front fork Diagram Kawasaki KMX200
- Year
- 1988
- Colour
- Ebony (H8)
- Model code
- KMX200-A2
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131G0840 BOLT,8X40 |
131G0840 |
US $66.20 |
||
| replacement | |||||
|
131
|
131
92001-1188
BOLT,8X40
|
92001-1188 |
— | ||
|
131A
|
131A
131J0845 BOLT-FLANGED,8X45,BLA |
131J0845 |
from US $2.29 |
||
| replacement | |||||
|
131A
|
131A
92001-1205 BOLT,FLANGED,8X45 |
92001-1205 |
from US $6.84 |
||
|
220
|
220
220B0316 SCREW-PAN-CROS |
220B0316 |
from US $0.45 |
||
|
220A
|
220A
220B0408
SCREW-PAN-CROS
|
220B0408 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
11009
|
11009
11009-1127 GASKET,FORK CYLINDER |
11009-1127 |
from US $3.80 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLG |
44045002 |
from US $3.96 |
||
|
16126
|
16126
16126-1052 VALVE AIR |
16126-1052 |
from US $23.34 |
||
|
44001A
|
44001A
44001-1668-BL Fork-front,red |
44001-1668-BL |
US $2,511.96 |
||
|
44005
|
44005
44005-1271 Pipe-left fork outer |
44005-1271 |
US $438.50 |
||
|
44006
|
44006
44006-1268 Pipe-right fork outer |
44006-1268 |
US $438.50 |
||
|
44013
|
44013
44013-1272 Pipe-fork inner |
44013-1272 |
US $595.32 |
||
|
44022
|
44022
44022-1220 Cylinder-fork |
44022-1220 |
US $143.32 |
||
|
44026
|
44026
44026-1381 Spring-front fork |
44026-1381 |
US $65.82 |
||
|
44028
|
44028
44028-1003 GUIDE,FORK SPRING |
44028-1003 |
from US $8.87 |
||
|
44029
|
44029
44029-1042 SEAT-FORK SPRING |
44029-1042 |
from US $50.27 |
||
|
44037
|
44037
44037-1229 Holder-fork under |
44037-1229 |
US $413.82 |
||
|
44039
|
44039
44039-1170 Holder-fork upper |
44039-1170 |
US $299.11 |
||
|
44065
|
44065
44065-1057
BUSHING,FORK PIPE
|
44065-1057 |
— | ||
| replacement | |||||
|
44065
|
44065
92028-1126 BUSHING,FORK PIPE |
92028-1126 |
from US $20.53 |
||
|
49006A
|
49006A
49006-1222-BL Boot,fork,red |
49006-1222-BL |
US $69.56 |
||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
|
56040-1120 |
— | ||
|
92001
|
92001
92001-1309 BOLT,FORK CYLINDER |
92001-1309 |
from US $4.59 |
||
|
92015
|
92015
92015-1653
NUT,STEERING STEM,22M
|
92015-1653 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-1521 NUT,STEERING STEM,22M |
92210-1521 |
from US $10.30 |
||
|
92022
|
92022
92022-1242 WASHER,FORK OUT PIPE |
92022-1242 |
US $5.63 |
||
| replacement | |||||
|
92022
|
92022
92022-1262 WASHER,FORK OUT PIPE |
92022-1262 |
from US $5.07 |
||
|
92022A
|
92022A
92022-1873 WASHER |
92022-1873 |
from US $4.75 |
||
|
92026
|
92026
92026-1294 SPACER |
92026-1294 |
from US $30.07 |
||
|
92028
|
92028
92028-1125
Bushing
|
92028-1125 |
— | ||
| replacement | |||||
|
92028
|
92028
44065-1091 BUSHING-FRONT FORK,OU |
44065-1091 |
from US $17.74 |
||
|
92033
|
92033
92033-1047 SNAP RING,FORK OUTER |
92033-1047 |
from US $3.80 |
||
|
92037
|
92037
92037-1973 Clamp |
92037-1973 |
US $17.90 |
||
|
92048
|
92048
92047-010 CONE STERNG BERG LOW |
92047-010 |
from US $9.66 |
||
|
92049
|
92049
92049-1180 SEAL-OIL,FRONT FORK |
92049-1180 |
from US $15.05 |
||
|
92055
|
92055
92055-1050 0 RING,FORK TOP CAP |
92055-1050 |
from US $3.48 |
||
|
92072
|
92072
92072-1046 BAND,BOOT |
92072-1046 |
from US $6.49 |
||
|
92093
|
92093
92093-1166 SEAL,FRONT FORK |
92093-1166 |
from US $12.67 |
||
