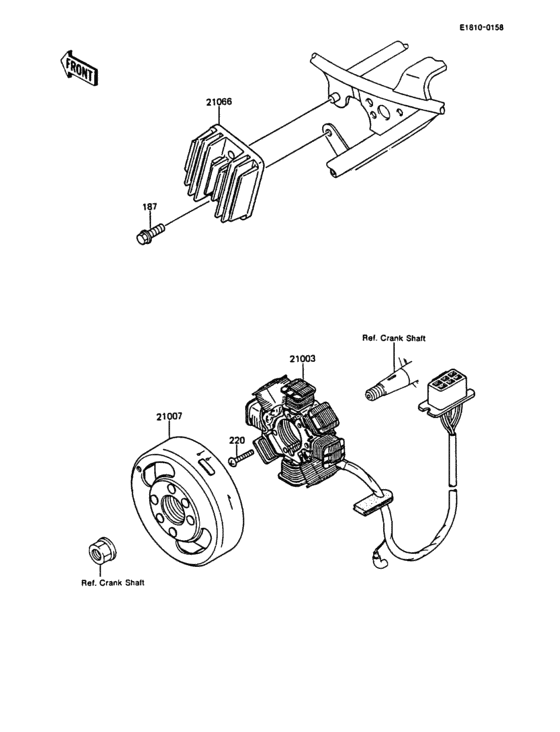

Generator Diagram Kawasaki KMX200
- Year
- 1988
- Colour
- Ebony (H8)
- Model code
- KMX200-A2
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0620 BOLT-UPSET-WSP |
187B0620 |
from US $1.11 |
||
| replacement | |||||
|
187
|
187
187AA0620 BOLT-UPSET-WSP |
187AA0620 |
from US $1.27 |
||
|
220
|
220
220B0530
SCREW-PAN-CROS
|
220B0530 |
— | ||
| replacement | |||||
|
220
|
220
220AA0530 SCREW-PAN-CROS |
220AA0530 |
from US $0.95 |
||
|
21003
|
21003
21003-1144 ステ-タ |
21003-1144 |
US $550.31 |
||
|
21007
|
21007
21007-1144
ロ-タ
|
21007-1144 |
— | ||
|
21066
|
21066
21066-1052 REGULATOR-VOLTAGE |
21066-1052 |
from US $115.19 |
||
