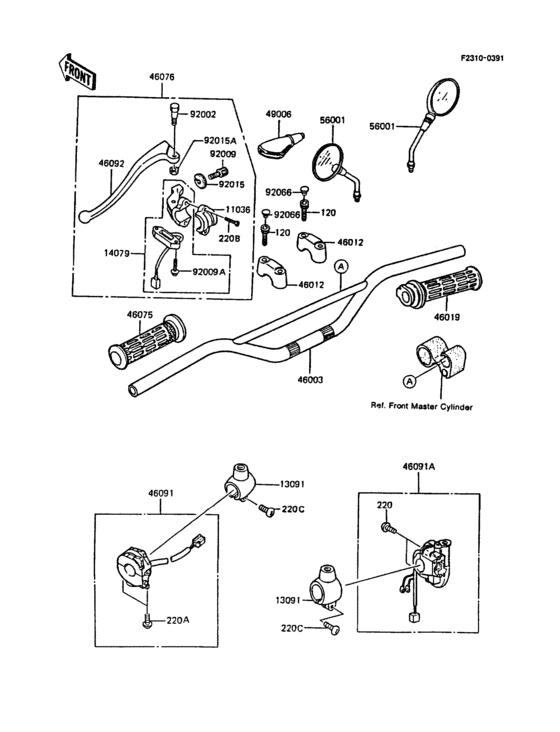

Handlebar Diagram Kawasaki KMX200
- Year
- 1988
- Colour
- Ebony (H8)
- Model code
- KMX200-A2
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
|
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLAC |
120CB0830 |
from US $1.27 |
||
|
220
|
220
220B0518 SCREW-PAN-CROS |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0518 SCREW-PAN-CROS |
220AA0518 |
from US $0.94 |
||
|
220A
|
220A
220B0522 SCREW-PAN-CROS |
220B0522 |
US $0.95 |
||
| replacement | |||||
|
220A
|
220A
220AA0522 SCREW-PAN-CROS |
220AA0522 |
from US $0.82 |
||
|
220B
|
220B
220C0514
SCREW-PAN-CROSS
|
220C0514 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
220C
|
220C
220C0620 SCREW-PAN-CROSS |
220C0620 |
from US $1.27 |
||
| replacement | |||||
|
220C
|
220C
220AB0620 SCREW-PAN-CROSS |
220AB0620 |
from US $1.15 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13091
|
13091
13091-1255 HOLDER,ENGINE STOP SW |
13091-1255 |
from US $53.86 |
||
|
14079
|
14079
14079-1055 HOLDER-ASSY,CLUTCH |
14079-1055 |
US $0.04 |
||
|
46003
|
46003
46003-1226 HANDLE |
46003-1226 |
from US $86.54 |
||
|
46012
|
46012
46012-1102 HOLDER-HANDLE |
46012-1102 |
US $21.39 |
||
|
46019
|
46019
46019-1005 GRIP ASSY,THROTTLE |
46019-1005 |
from US $33.42 |
||
|
46075
|
46075
46075-1004 GRIP,L.H. |
46075-1004 |
from US $13.28 |
||
|
46076
|
46076
46076-1138 Lever-assy-grip,clutc |
46076-1138 |
US $76.45 |
||
|
46091
|
46091
46091-1395
HOUSING-ASSY-CONTROL,
|
46091-1395 |
— | ||
|
46091A
|
46091A
46091-1451
HOUSING-ASSY-CONTROL,
|
46091-1451 |
— | ||
|
46092
|
46092
46092-1111 LEVER-GRIP,CLUTCH |
46092-1111 |
US $23.79 |
||
| replacement | |||||
|
46092
|
46092
46092-0554 LEVER-GRIP,CLUTCH |
46092-0554 |
from US $21.31 |
||
|
49006
|
49006
49006-1099 BOOT,LEVER HOLDER |
49006-1099 |
US $16.32 |
||
|
56001
|
56001
56001-1285 MIRROR-ASSY |
56001-1285 |
from US $54.60 |
||
|
92002
|
92002
92002-1475 BOLT,LEVER SET |
92002-1475 |
from US $4.75 |
||
|
92009
|
92009
46055009 SCREW,CABLE ADJUST |
46055009 |
from US $12.99 |
||
|
92009A
|
92009A
92009-1336 SCREW,TAPPING |
92009-1336 |
from US $2.59 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCK |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92015-1191
NUT,LOCK,6MM
|
92015-1191 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
|
92066
|
92066
92066-1216 PLUG,HANDLE HOLDER |
92066-1216 |
from US $3.01 |
||
