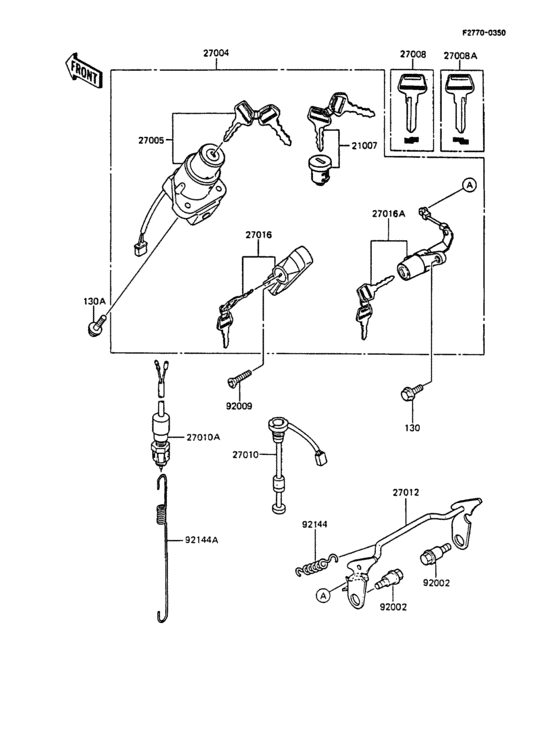

Ignition switch Diagram Kawasaki KMX200
- Year
- 1988
- Colour
- Ebony (H8)
- Model code
- KMX200-A2
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0608 BOLT-FLANGED |
130D0608 |
US $3.80 |
||
| replacements | |||||
|
130
|
130
130BA0608 BOLT-FLANGED |
130BA0608 |
from US $1 |
||
|
130
|
130
130AA0608 BOLT-FLANGED |
130AA0608 |
from US $1.05 |
||
|
130A
|
130A
130D0614
BOLT-FLANGED,6X14
|
130D0614 |
— | ||
| replacements | |||||
|
130A
|
130A
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
21007
|
21007
21007-5022 SWITCH-ASSY,TANK CAP |
21007-5022 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5325
SWITCH-ASSY
|
27004-5325 |
— | ||
|
27005
|
27005
27005-1103 SWITCH-ASSY-IGNITION |
27005-1103 |
from US $194.57 |
||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANK |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1041 SWITCH,OIL LEVEL |
27010-1041 |
US $53.86 |
||
|
27010A
|
27010A
27010-1215 Switch,brake lamp |
27010-1215 |
US $18.41 |
||
| replacements | |||||
|
27010A
|
27010A
27010-1437 SWITCH,BRAKE LAMP |
27010-1437 |
from US $18.82 |
||
|
27010A
|
27010A
27010-1474 SWITCH,REAR BRAKE |
27010-1474 |
from US $21.84 |
||
|
27010A
|
27010A
27010-1019 SWITCH,REAR BRAKE |
27010-1019 |
from US $21.69 |
||
|
27012
|
27012
27012-1389 HOOK,SEAT |
27012-1389 |
US $26.03 |
||
|
27016
|
27016
27016-5029
LOCK-ASSY,HELMET
|
27016-5029 |
— | ||
| replacements | |||||
|
27016
|
27016
27016-5285
ロツクアツシ，ヘルメツト
|
27016-5285 |
— | ||
|
27016
|
27016
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
|
27016A
|
27016A
27016-5115
LOCK-ASSY,SEAT
|
27016-5115 |
— | ||
|
92002
|
92002
92002-1596 BOLT,* |
92002-1596 |
US $7.44 |
||
|
92009
|
92009
92009-1547 SCREW,5X18 |
92009-1547 |
US $3.48 |
||
|
92144
|
92144
92144-1120
SPRING,SEAT LOCK RETU
|
92144-1120 |
— | ||
|
92144A
|
92144A
92144-1191 SPRING,BRAKE LAMP SWI |
92144-1191 |
from US $6.49 |
||
