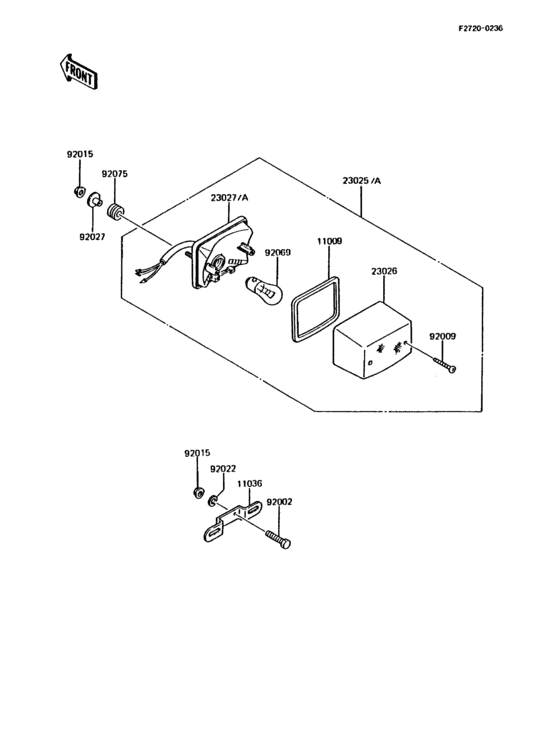

Taillight(s) Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Lime Green (7F)
- Model code
- KMX200-A3
- Sales region
- Germany
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1078 GASKET,TAIL LAMP LENS |
11009-1078 |
from US $4.80 |
||
|
11036
|
11036
11036-1040 BRACKET,LICENSE PLATE |
11036-1040 |
US $16.65 |
||
| replacement | |||||
|
11036
|
11036
11051-1522 BRACKET,LICENSE PLATE |
11051-1522 |
US $12.44 |
||
|
23025A
|
23025A
23025-1149
Lamp-tail
|
23025-1149 |
— | ||
| replacement | |||||
|
23025A
|
23025A
23025-1148 LAMP-TAIL |
23025-1148 |
from US $86.16 |
||
|
23026
|
23026
23026-1081 LENS,TAIL LAMP |
23026-1081 |
from US $39.64 |
||
|
23027A
|
23027A
23027-1075
Body-comp-tail lamp
|
23027-1075 |
— | ||
| replacement | |||||
|
23027A
|
23027A
23025-1148 LAMP-TAIL |
23025-1148 |
from US $86.16 |
||
|
92002
|
92002
92002-1124 BOLT-UPSET-WP |
92002-1124 |
from US $0.85 |
||
| replacement | |||||
|
92002
|
92002
186AA0616 BOLT-UPSET-WP |
186AA0616 |
US $0.97 |
||
|
92009
|
92009
92009-1056 SCREW,TAPPING |
92009-1056 |
from US $3.17 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-251
COLLAR
|
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-063 BULB,12V 21/5W |
92069-063 |
from US $6.49 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
