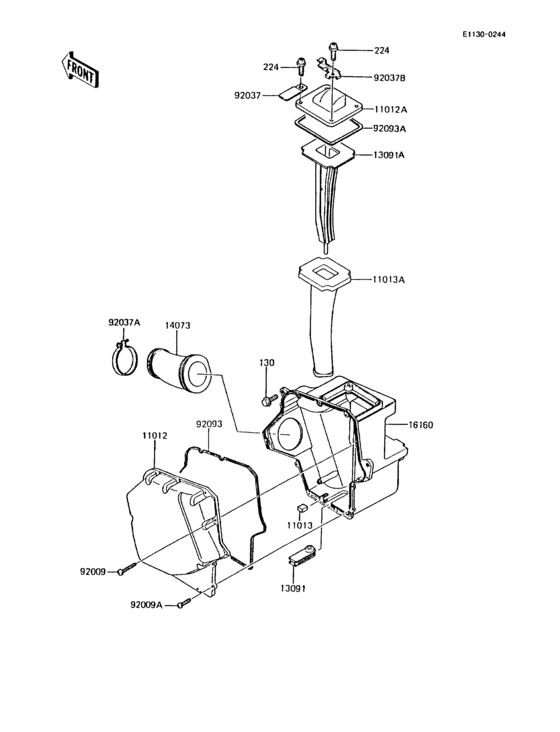

Air cleaner Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Ebony (H8)
- Model code
- KMX200-A3
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
|
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
224
|
224
224B0618 SCREW-PAN-WP-CROS |
224B0618 |
US $1.11 |
||
| replacement | |||||
|
224
|
224
224AA0618
SCREW-PAN-WP-CROS
|
224AA0618 |
— | ||
|
11012
|
11012
11012-1556 CAP,AIR FILTER |
11012-1556 |
from US $57.15 |
||
|
11012A
|
11012A
11012-1607 Cap,air inlet |
11012-1607 |
US $15.84 |
||
|
11013
|
11013
11013-1147 ELEMENT-AIR FILTER,DR |
11013-1147 |
US $2.53 |
||
|
11013A
|
11013A
11013-1178 Element-air filter |
11013-1178 |
US $41.89 |
||
|
13091
|
13091
13091-1429 HOLDER |
13091-1429 |
US $9.19 |
||
|
13091A
|
13091A
13091-1459 HOLDER,ELEMENT |
13091-1459 |
from US $16.63 |
||
|
14073
|
14073
14073-1263 DUCT,CARBURETOR |
14073-1263 |
US $20.64 |
||
|
16160
|
16160
16160-1119
BODY,AIR FILTER
|
16160-1119 |
— | ||
|
92009
|
92009
92009-1378 SCREW, TAPPING, 4X20 |
92009-1378 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1429 SCREW |
92009-1429 |
from US $2.27 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1326
CLAMP
|
92037-1326 |
— | ||
| replacement | |||||
|
92037A
|
92037A
92170-1438 CLAMP |
92170-1438 |
from US $6.18 |
||
|
92037B
|
92037B
92037-1882 CLAMP |
92037-1882 |
US $9.66 |
||
|
92093
|
92093
92093-1215
SEAL,AIR FILTER CASE
|
92093-1215 |
— | ||
|
92093A
|
92093A
92093-1216
SEAL,AIR INLET CAP
|
92093-1216 |
— | ||
