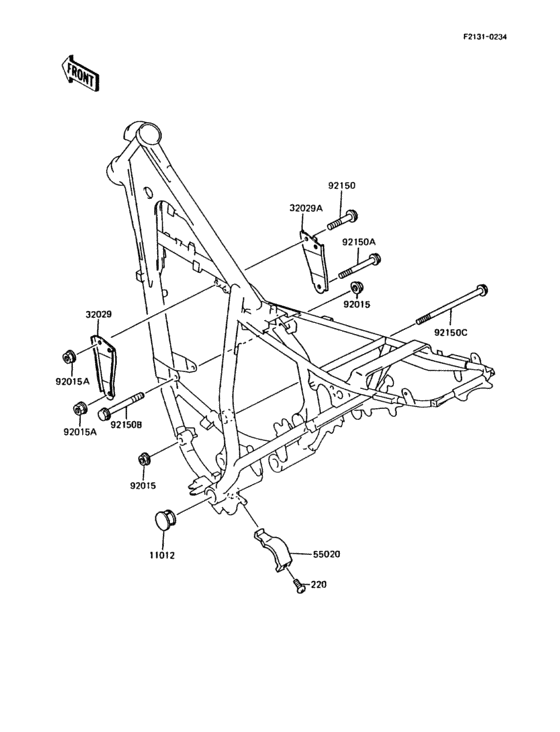

Frame fittings Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Ebony (H8)
- Model code
- KMX200-A3
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0510
SCREW-PAN-CROSS,5X10
|
220B0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
11012
|
11012
11012-1559 CAP |
11012-1559 |
from US $5.07 |
||
|
32029
|
32029
32029-1482 BRACKET-ENGINE,LH |
32029-1482 |
US $15.52 |
||
|
32029A
|
32029A
32029-1483 BRACKET-ENGINE,RH |
32029-1483 |
US $15.52 |
||
|
55020
|
55020
55020-1231
GUARD,FRAME CLOSS
|
55020-1231 |
— | ||
|
92015
|
92015
92015-1668 NUT,FLANGED,LOCK,8MM |
92015-1668 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1696 NUT,FLANGED,LOCK,8MM |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0005 NUT,FLANGED,LOCK,8MM |
92210-0005 |
from US $2.30 |
||
|
92150
|
92150
92150-1034 BOLT,FLANGED,8X45 |
92150-1034 |
US $3.64 |
||
|
92150A
|
92150A
92150-1035 BOLT,FLANGED,8X65 |
92150-1035 |
US $6.49 |
||
|
92150B
|
92150B
92150-1036 BOLT,FLANGED,8X65 |
92150-1036 |
from US $3.17 |
||
|
92150C
|
92150C
92150-1037 BOLT,FLANGED,8X135 |
92150-1037 |
US $5.86 |
||
