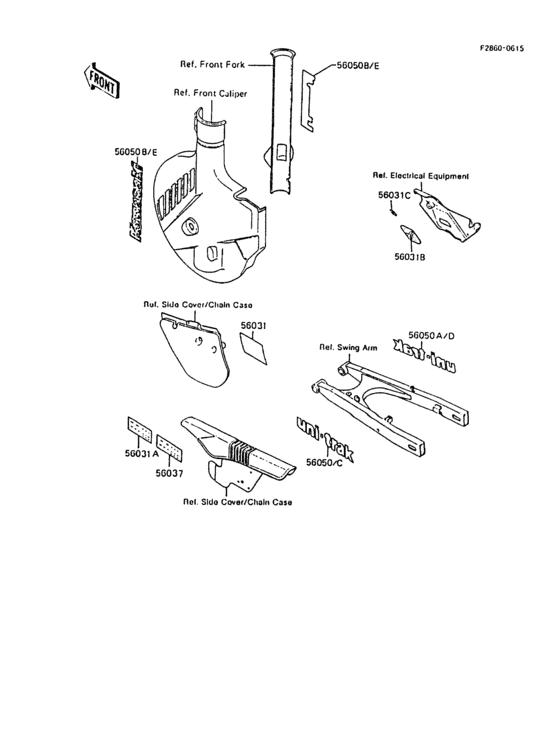

Labels Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Ebony (H8)
- Model code
- KMX200-A3
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56031
|
56031
56031-1491 LABEL-MANUAL,DAILY SA |
56031-1491 |
US $7.46 |
||
|
56031A
|
56031A
56031-1495
Label-manual,chain
|
56031-1495 |
— | ||
|
56031B
|
56031B
56031-1497
LABEL-MANUAL,BATTERY
|
56031-1497 |
— | ||
|
56031C
|
56031C
56031-1506
LABEL-MANUAL
|
56031-1506 |
— | ||
|
56037
|
56037
56037-1300
Label-specification,tire&load
|
56037-1300 |
— | ||
|
56050
|
56050
56050-1170 MARK,SWING ARM,UNI-TR |
56050-1170 |
from US $13.66 |
||
|
56050A
|
56050A
56050-1258 Mark,swing arm,rh,green&blue |
56050-1258 |
US $25.28 |
||
|
56050B
|
56050B
56050-1259 MARK,KAWASAKI,FOR GRE |
56050-1259 |
US $19.17 |
||
|
56050C
|
56050C
56050-1260 Mark,swing arm,lh,for ebony |
56050-1260 |
US $25.28 |
||
|
56050D
|
56050D
56050-1261
Mark,swing arm,rh,for ebony
|
56050-1261 |
— | ||
|
56050E
|
56050E
56050-1262 Mark,kawasaki,for ebony(red) |
56050-1262 |
US $20.50 |
