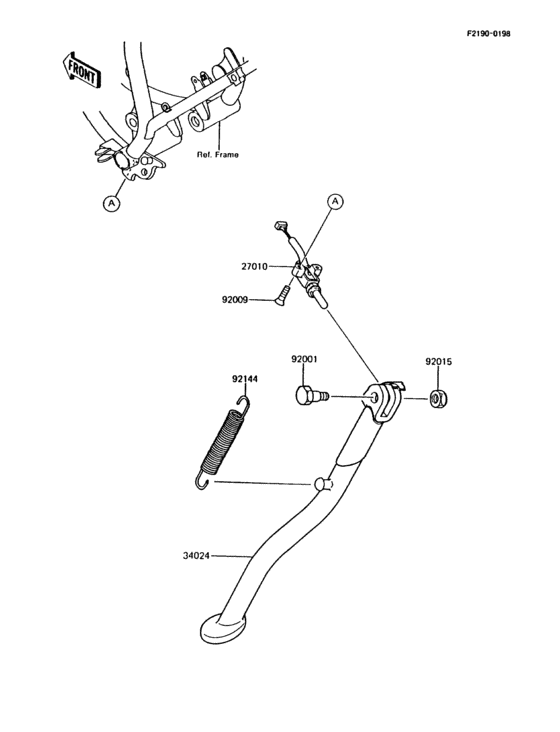

Stand(s) Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Ebony (H8)
- Model code
- KMX200-A3
- Sales region
- South Africa
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27010-1247 SWITCH,SIDE STAND |
27010-1247 |
US $49.52 |
||
| replacement | |||||
|
27010
|
27010
27010-1425 SWITCH,SIDE STAND |
27010-1425 |
US $43.08 |
||
|
34024
|
34024
34024-1211 STAND-SIDE |
34024-1211 |
from US $56.70 |
||
|
92001
|
92001
92003-157
BOLT,SIDE STAND
|
92003-157 |
— | ||
| replacement | |||||
|
92001
|
92001
92002-1813 BOLT,SIDE STAND |
92002-1813 |
from US $7.62 |
||
|
92009
|
92009
92009-1359 SCREW |
92009-1359 |
from US $3.29 |
||
|
92015
|
92015
92019-021
Nut,lock,10m/m
|
92019-021 |
— | ||
| replacements | |||||
|
92015
|
92015
92210-1184 NUT |
92210-1184 |
from US $4.09 |
||
|
92015
|
92015
92015-1962 NUT |
92015-1962 |
from US $3.33 |
||
|
92144
|
92144
92144-1017 SPRING,SIDE STAND |
92144-1017 |
US $9.66 |
||
