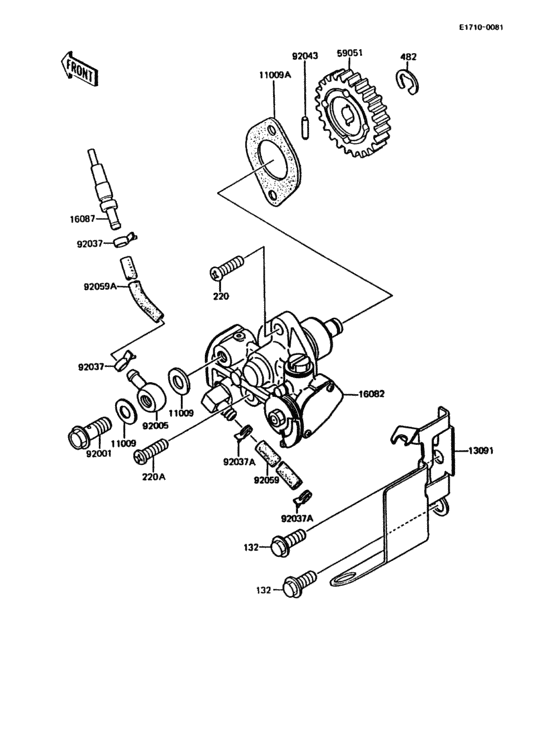

Oil pump Diagram Kawasaki KMX200
- Year
- 1989
- Colour
- Ebony (H8)
- Model code
- KMX200-A3A
- Sales region
- Germany
- Engine Capacity
- 200
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0612
BOLT-FLANGED-SMALL,6X
|
132J0612 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
220
|
220
220B0516 SCREW-PAN-CROS |
220B0516 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0516 SCREW-PAN-CROS |
220AA0516 |
from US $0.79 |
||
|
220A
|
220A
220B0528 SCREW-PAN-CROS |
220B0528 |
US $0.63 |
||
| replacement | |||||
|
220A
|
220A
220AA0528 SCREW-PAN-CROS |
220AA0528 |
from US $0.62 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MM |
482J6000 |
from US $1.05 |
||
|
11009
|
11009
11009-1298
GASKET,6X12X1.0
|
11009-1298 |
— | ||
| replacement | |||||
|
11009
|
11009
11060-1502 GASKET,6X12X1.0 |
11060-1502 |
US $3.96 |
||
|
11009A
|
11009A
16094-002 GASKET,OIL PUMP |
16094-002 |
US $3.67 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1160 GASKET,OIL PUMP |
11060-1160 |
from US $3.31 |
||
|
13091
|
13091
13091-1430 HOLDER,OIL PUMP CABLE |
13091-1430 |
US $11.88 |
||
|
16082
|
16082
16082-1091 Pump-assy-oil |
16082-1091 |
US $261.36 |
||
|
16087
|
16087
16087-1001 VALVE-CHECK |
16087-1001 |
from US $20.91 |
||
|
59051
|
59051
59051-1168 GEAR-SPUR,OIL PUMP,23 |
59051-1168 |
US $26.03 |
||
|
92001
|
92001
92060-013 BOLT,BANJO,6X16 |
92060-013 |
from US $4.59 |
||
| replacement | |||||
|
92001
|
92001
92150-1982 BOLT,BANJO,6X16 |
92150-1982 |
from US $3.80 |
||
|
92005
|
92005
92005-1146 FITTING |
92005-1146 |
from US $12.46 |
||
|
92037
|
92037
92037-1260 CLAMP,TUBE |
92037-1260 |
from US $2.85 |
||
|
92037A
|
92037A
92037-1601 CLAMP |
92037-1601 |
from US $8.40 |
||
|
92043
|
92043
92043-1316 PIN,3.5X17.8 |
92043-1316 |
US $3.33 |
||
|
92059
|
92059
92059-1691
TUBE,4.5X9X380
|
92059-1691 |
— | ||
|
92059A
|
92059A
92059-1692 TUBE,3X6X40 |
92059-1692 |
from US $2.41 |
||
