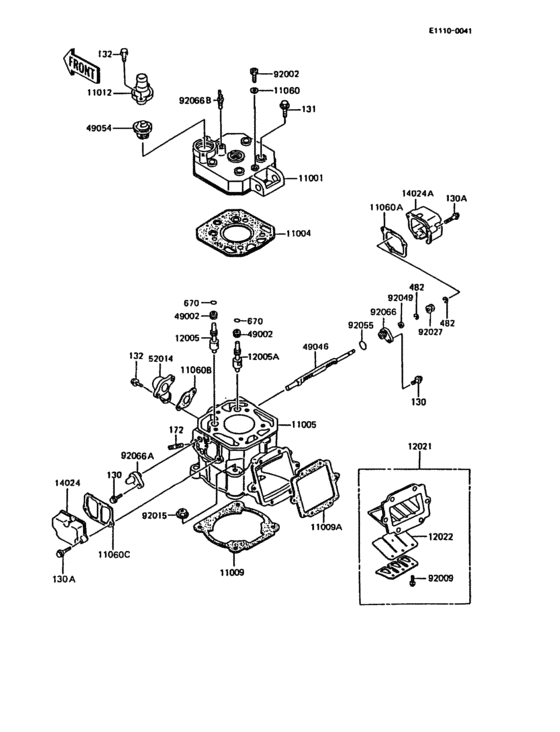

Cylinder head/cylinder Diagram Kawasaki KMX200
- Year
- 1991
- Model code
- KMX200-A5
- Sales region
- Greece
- Engine Capacity
- 200
- Frame
- MX200A 019001 - 999999
- Model
- KMX200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0516 BOLT-FLANGED |
130BA0516 |
from US $1.07 |
||
|
130A
|
130A
130BB0530 BOLT-FLANGED |
130BB0530 |
from US $1.09 |
||
|
131
|
131
130S0850 BOLT-FLANGED |
130S0850 |
from US $2.06 |
||
| replacement | |||||
|
131
|
131
130CB0850 BOLT-FLANGED |
130CB0850 |
from US $1.56 |
||
|
132
|
132
92002-1570 BOLT-FLANGED-SMALL,6X |
92002-1570 |
from US $3.02 |
||
| replacement | |||||
|
132
|
132
132BB0616 BOLT-FLANGED-SMALL,6X |
132BB0616 |
from US $1.11 |
||
|
172
|
172
172BA0822 BOLT-STUD,8X22 |
172BA0822 |
from US $1.24 |
||
|
482
|
482
482K4000 CIRCLIP SELD BEM FIT |
482K4000 |
from US $1.85 |
||
|
670
|
670
670B2018 0 RING,18MM |
670B2018 |
from US $1.77 |
||
|
11001
|
11001
11001-1294
Head-cylinder
|
11001-1294 |
— | ||
|
11004
|
11004
11004-1170 GASKET-HEAD |
11004-1170 |
from US $32.61 |
||
|
11005
|
11005
11005-1574
CYLINDER-ENGINE
|
11005-1574 |
— | ||
|
11009
|
11009
11009-1880 GASKET,CYLINDER BASE |
11009-1880 |
US $12.99 |
||
|
11009A
|
11009A
11009-1941 GASKET,REED VALVE |
11009-1941 |
from US $8.68 |
||
|
11012
|
11012
11012-1513 CAP,THERMOSTAT |
11012-1513 |
from US $23.64 |
||
|
11060
|
11060
11060-1155 GASKET,6X12X1.13 |
11060-1155 |
from US $3.27 |
||
|
11060A
|
11060A
11060-1157 GASKET,RH,GOVERNOR |
11060-1157 |
from US $5.60 |
||
|
11060B
|
11060B
11060-1158 GASKET,ELBOW |
11060-1158 |
from US $3.55 |
||
|
11060C
|
11060C
11060-1161 GASKET,LH,RESONATOR |
11060-1161 |
US $6.12 |
||
|
12005
|
12005
12005-1196
VALVE-EXHAUST
|
12005-1196 |
— | ||
|
12005A
|
12005A
12005-1197
VALVE-EXHAUST,RH
|
12005-1197 |
— | ||
|
12021
|
12021
12021-1074 VALVE-ASSY-REED |
12021-1074 |
US $149.42 |
||
|
12022
|
12022
12022-1061 VALVE-REED |
12022-1061 |
from US $12.76 |
||
|
14024
|
14024
14024-1622 Cover,lh,resonator |
14024-1622 |
US $37.40 |
||
|
14024A
|
14024A
14024-1650 COVER,RH,GOVERNOR |
14024-1650 |
from US $33.96 |
||
|
49002
|
49002
49002-1080 Guide-valve |
49002-1080 |
US $17.27 |
||
|
49046
|
49046
49046-1061 Rod-governor |
49046-1061 |
US $80.93 |
||
|
49054
|
49054
49054-1057 THERMOSTAT |
49054-1057 |
from US $42.88 |
||
|
52014
|
52014
52014-1061 ELBOW |
52014-1061 |
US $23.34 |
||
|
92002
|
92002
92002-1222 BOLT,6X10 |
92002-1222 |
from US $5.23 |
||
|
92009
|
92009
92009-1014 SCREW,REED VALVE |
92009-1014 |
from US $2.38 |
||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92027
|
92027
92027-1834 COLLAR,GOVERNOR ROD |
92027-1834 |
from US $11.72 |
||
|
92049
|
92049
92049-1206 SEAL-OIL,RSO-5.5 11 4 |
92049-1206 |
from US $9.56 |
||
|
92055
|
92055
92055-1150 O RING,10MM |
92055-1150 |
from US $5.23 |
||
|
92066
|
92066
92066-1254 PLUG,GOVERNOR ROD,RH |
92066-1254 |
US $16.16 |
||
|
92066A
|
92066A
92066-1255 PLUG,GOVERNOR ROD,LH |
92066-1255 |
US $16.16 |
||
|
92066B
|
92066B
92066-1307 Plug,sensor,water |
92066-1307 |
US $55.20 |
||
