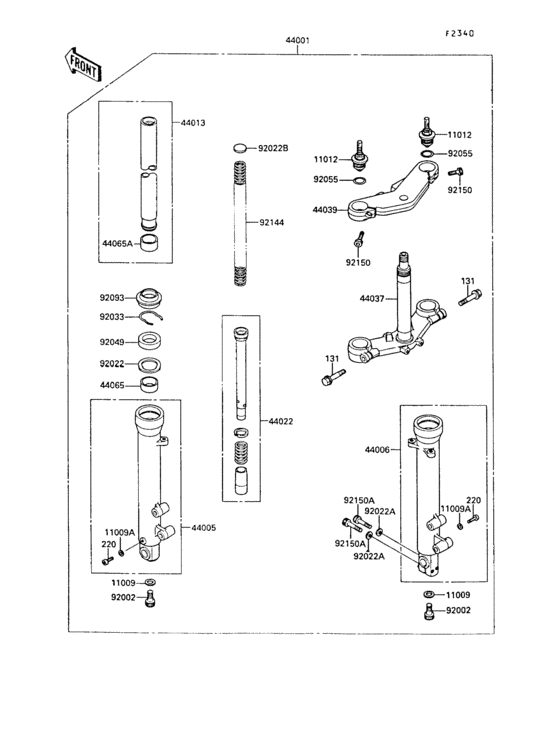

Front fork Diagram Kawasaki KR250 KR-I
- Year
- 1989
- Colour
- Firecracker Red / Polar White (CY)
- Model code
- KR250-B2
- Sales region
- Europe
- Engine Capacity
- 250
- Model
- KR250 KR-I
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131G1040 Bolt |
131G1040 |
US $71.30 |
||
| replacement | |||||
|
131
|
131
92151-1171 Bolt |
92151-1171 |
from US $6.18 |
||
|
220
|
220
220B0408
SCREW-PAN-CROS
|
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
11009
|
11009
11009-1553 GASKET,FORK DRAIN PLU |
11009-1553 |
from US $3.96 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLG |
44045002 |
from US $3.96 |
||
|
11012
|
11012
11012-1667 CAP,FORK TOP |
11012-1667 |
from US $91.89 |
||
|
44001
|
44001
44001-1687-CE Fork-front,silver no. |
44001-1687-CE |
US $2,668.55 |
||
|
44005
|
44005
44005-1279-CE
Pipe-left fork outer,
|
44005-1279-CE |
— | ||
|
44006
|
44006
44006-1276-CE Pipe-right fork outer |
44006-1276-CE |
US $413.82 |
||
|
44013
|
44013
44013-1279 Pipe-fork inner |
44013-1279 |
US $287.50 |
||
|
44022
|
44022
44022-1229
Cylinder-fork
|
44022-1229 |
— | ||
|
44037
|
44037
44037-1243 Holder-fork under |
44037-1243 |
US $413.82 |
||
|
44039
|
44039
44039-1180
Holder-fork upper
|
44039-1180 |
— | ||
|
44065
|
44065
44065-1085 BUSHING-FRONT FORK |
44065-1085 |
from US $21.84 |
||
|
44065A
|
44065A
44065-1086 BUSHING-FRONT FORK,IN |
44065-1086 |
from US $21.84 |
||
|
92002
|
92002
92002-1650 BOLT,FORK DRAIN |
92002-1650 |
from US $9.50 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $6.57 |
||
|
92022A
|
92022A
92022-1598 WASHER |
92022-1598 |
from US $4.75 |
||
|
92022B
|
92022B
92022-1965 WASHER |
92022-1965 |
from US $3.51 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-1273 Seal-oil,fork outer |
92049-1273 |
US $11.29 |
||
| replacements | |||||
|
92049
|
92049
92049-1356 SEAL-OIL |
92049-1356 |
from US $15.05 |
||
|
92049
|
92049
92049-1347 SEAL-OIL |
92049-1347 |
US $18.79 |
||
|
92055
|
92055
92055-1122
RING-O,FORK TOP CAP
|
92055-1122 |
— | ||
|
92093
|
92093
92093-1232 Seal,fork outer tube |
92093-1232 |
US $11 |
||
| replacement | |||||
|
92093
|
92093
92093-1359 Dust seal, fork |
92093-1359 |
from US $18.06 |
||
|
92144
|
92144
92144-1333 Spring,front fork |
92144-1333 |
US $39.34 |
||
|
92150
|
92150
92150-1172
BOLT-SOCKET,8X25
|
92150-1172 |
— | ||
| replacement | |||||
|
92150
|
92150
120CA0825 BOLT-SOCKET,8X25 |
120CA0825 |
from US $0.95 |
||
|
92150A
|
92150A
92150-1194 BOLT-SOCKET,8X40 |
92150-1194 |
US $2.81 |
||
| replacement | |||||
|
92150A
|
92150A
120CA0840 BOLT-SOCKET,8X40 |
120CA0840 |
from US $1.27 |
||
