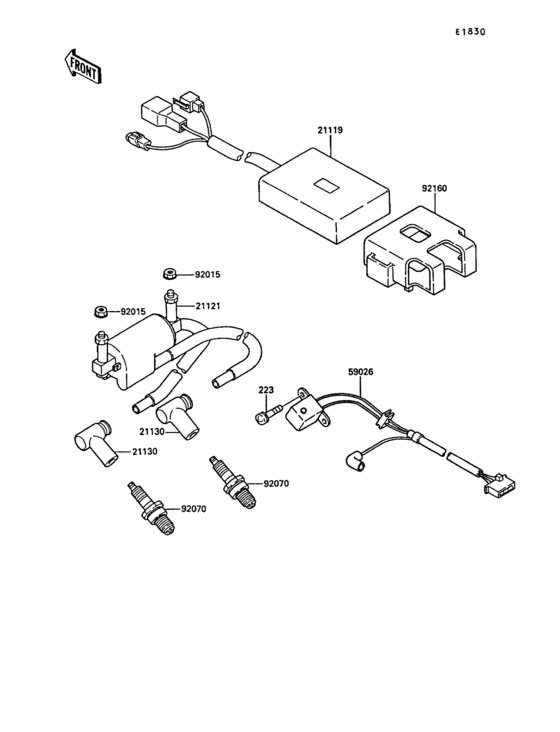

Ignition System Diagram Kawasaki KR250 KR-I
- Year
- 1989
- Colour
- Firecracker Red / Polar White (CY)
- Model code
- KR250-B2
- Sales region
- Europe
- Engine Capacity
- 250
- Model
- KR250 KR-I
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0512
SCREW-PAN-WS-CROS,5X1
|
223B0512 |
— | ||
| replacement | |||||
|
223
|
223
223AA0512 SCREW-PAN-WS-CROS,5X1 |
223AA0512 |
from US $1.11 |
||
|
21119
|
21119
21119-1234 Igniter |
21119-1234 |
US $1,266.14 |
||
|
21121
|
21121
21121-1164
Coil-ignition
|
21121-1164 |
— | ||
|
21130
|
21130
21130-1062 Cap-spark plug |
21130-1062 |
from US $25.88 |
||
|
59026
|
59026
59026-1090 COIL-PULSING |
59026-1090 |
from US $97.99 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
|
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92070
|
92070
92070-1157 SPARK PLUG BR9ES |
92070-1157 |
from US $3.11 |
||
|
92160
|
92160
92160-1047 DAMPER |
92160-1047 |
from US $21.64 |
||
