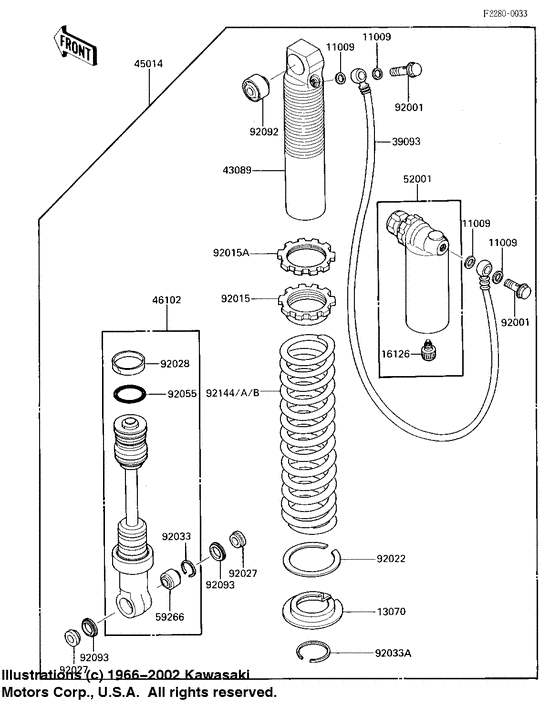

Shock absorber Diagram Kawasaki KX125
- Year
- 1986
- Model code
- KX125-E1
- Sales region
- USA
- Engine Capacity
- 125
- Model
- KX125-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
13070
|
13070
13070-1150 GUIDE |
13070-1150 |
US $49.99 |
||
|
16126
|
16126
16126-1118 VALVE,AIRValve,air; |
16126-1118 |
US $26.10 |
||
|
39093
|
39093
39093-1111
PIPE-COMP-SUSP
|
39093-1111 |
— | ||
|
43089
|
43089
43089-1112 CYLINDER-SHOCKABSORBE |
43089-1112 |
US $420.97 |
||
|
45014
|
45014
45014-1358 Shock Absorber |
45014-1358 |
US $1,248.08 |
||
|
46102
|
46102
46102-1167 ROD |
46102-1167 |
US $738.20 |
||
|
52001
|
52001
52001-1068 TANK-OIL |
52001-1068 |
US $348.10 |
||
|
59266
|
59266
59266-1053 JOINT-BALL,REAR SHOCKJoint-ball,rear shoc; |
59266-1053 |
from US $94.55 |
||
|
92001
|
92001
92001-1752 BOLT,PIPE-COMP-SUSPBolt,pipe-comp-susp; |
92001-1752 |
US $10.64 |
||
|
92015
|
92015
92015-1552 NUT |
92015-1552 |
US $45.32 |
||
|
92015A
|
92015A
92015-1562 NUT |
92015-1562 |
US $32.72 |
||
|
92022
|
92022
92022-1773 WASHER |
92022-1773 |
US $23.27 |
||
|
92027
|
92027
92027-1976 COLLAR,SHOCK ABSORBERCollar,shockabsorber; |
92027-1976 |
US $12.31 |
||
| replacement | |||||
|
92027
|
92027
92143-1116 COLLAR,SHOCK ABSORBERCollar,shockabsorber; |
92143-1116 |
US $12.31 |
||
|
92028
|
92028
92028-1411
BUSHING
|
92028-1411 |
— | ||
|
92033
|
92033
92033-1090 RING-SNAP,REARSHOCKRing-snap,rearshock; |
92033-1090 |
from US $3.64 |
||
|
92033A
|
92033A
92033-1206 RING-SNAP |
92033-1206 |
US $2.66 |
||
|
92055
|
92055
92055-1181
RING-O,ROD
Ring-o,rod; |
92055-1181 |
— | ||
|
92092
|
92092
92092-1058 BUSHING-RUBBER |
92092-1058 |
from US $20.43 |
||
|
92093
|
92093
92093-1183 SEAL,REAR SHOCKSeal,rear shock; |
92093-1183 |
from US $11.25 |
||
|
92144
|
92144
92144-1004 SPRING,SHOCKABSORBER,Spring,shockabsorber; |
92144-1004 |
US $300.74 |
||
|
92144A
|
92144A
92144-1009 SPRING,SHOCKABSORBER,Spring,shockabsorber; |
92144-1009 |
US $301.37 |
||
|
92144B
|
92144B
92144-1010 SPRING,SHOCKABSORBER,Spring,shockabsorber; (option) |
92144-1010 |
US $301.37 |
||
