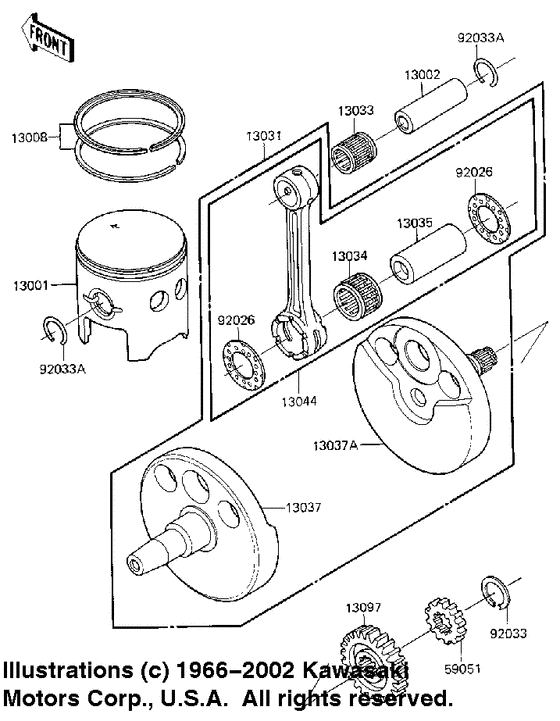

Crankshaft/piston Diagram Kawasaki KX250/ KX252 KX250
- Year
- 1985
- Model code
- KX250-D1
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-1004
PISTON,STD
Piston,std; |
13001-1004 |
— | ||
|
13002
|
13002
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
13008
|
13008
13008-5008
RING SET,STD
Ring set,std; |
13008-5008 |
— | ||
|
13031
|
13031
13031-1189 Crankshaft-comp |
13031-1189 |
US $771.93 |
||
|
13033
|
13033
13033-1010 BEARING-SMALL ENDBearing-small end; |
13033-1010 |
from US $21.23 |
||
|
13034
|
13034
13034-1060 BEARING-BIG END,H24X3Bearing-big end,h24x; |
13034-1060 |
US $55.87 |
||
|
13035
|
13035
13035-034
PIN,CRANK
Pin,crank; |
13035-034 |
— | ||
|
13037
|
13037
13037-1097 CRANKSHAFT |
13037-1097 |
US $347.65 |
||
|
13037A
|
13037A
13037-1158 CRANKSHAFT,RHCrankshaft,rh; |
13037-1158 |
US $260.30 |
||
|
13044
|
13044
13044-5042 SET-CONNECTING ROD |
13044-5042 |
US $188.60 |
||
|
13097
|
13097
13097-1070 GEAR-PRIMARY SPUR,20TGear-primary spur,20; |
13097-1070 |
US $53.91 |
||
|
59051
|
59051
59051-1049 GEAR-SPUR,WATER PUMP,Gear-spur,water pump; |
59051-1049 |
US $26.10 |
||
|
92026
|
92026
92026-1241
SPACER,24X42X1.6
|
92026-1241 |
— | ||
| replacement | |||||
|
92026
|
92026
92026-1500 SPACER,24X42X1.6 |
92026-1500 |
US $5.07 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MMCirclip,25mm; |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
