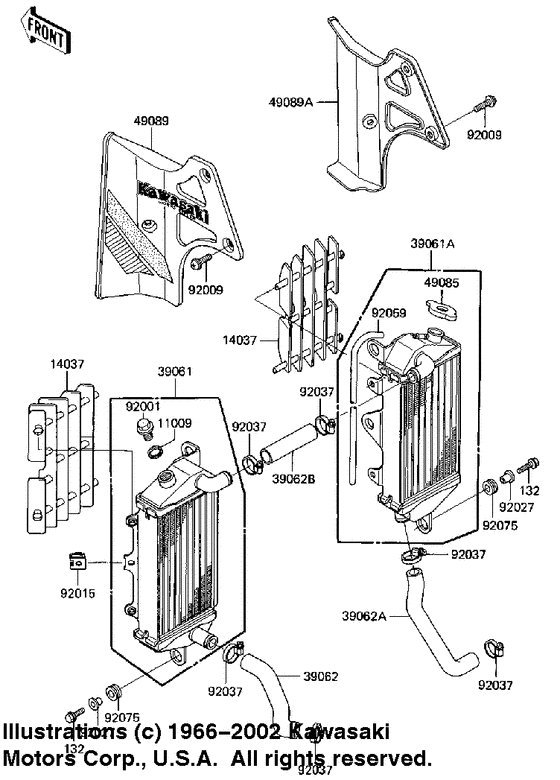

Radiators Diagram Kawasaki KX250/ KX252 KX250
- Year
- 1985
- Model code
- KX250-D1
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
11009
|
11009
11009-1152 GASKET,DRAIN PLUGGasket,drain plug; |
11009-1152 |
from US $5.54 |
||
|
14037
|
14037
14037-1077-6C SCREEN,RADIATOR,EBONYScreen,radiator,ebon; |
14037-1077-6C |
US $19.01 |
||
|
39061
|
39061
39061-1064 RADIATOR-ASSY,LHRadiator-assy,lh; |
39061-1064 |
US $533.72 |
||
|
39061A
|
39061A
39061-1065 RADIATOR-ASSY,RHRadiator-assy,rh; |
39061-1065 |
US $533.72 |
||
|
39062
|
39062
39062-1094 HOSE-COOLING,CYLINDERHose-cooling,cylinde; |
39062-1094 |
US $13.62 |
||
|
39062A
|
39062A
39062-1095 HOSE-COOLING,RADIATORHose-cooling,radiato; |
39062-1095 |
US $24.17 |
||
|
39062B
|
39062B
39062-1096 HOSE-COOLING,RADIATORHose-cooling,radiato; |
39062-1096 |
US $22.25 |
||
| replacement | |||||
|
39062B
|
39062B
39062-1256 HOSE-COOLING,RADIATORHose-cooling,radiato; |
39062-1256 |
from US $16.01 |
||
|
49085
|
49085
49085-1003
Cap-assy-pressure
|
49085-1003 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $33.96 |
||
|
49089
|
49089
49089-5004-6W
SHROUD-ENGINE,LH,L.GR
Shroud-engine,lh,l.g; |
49089-5004-6W |
— | ||
|
49089A
|
49089A
49089-5005-6W
SHROUD-ENGINE,RH,L.GR
Shroud-engine,rh,l.g; |
49089-5005-6W |
— | ||
|
92001
|
92001
92002-1682 BOLT,RADIATOR DRAINBolt,radiator drain; |
92002-1682 |
from US $13.62 |
||
|
92009
|
92009
92009-1286 SCREW,6X10Screw,6x10; |
92009-1286 |
from US $2.69 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92027
|
92027
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92037
|
92037
92037-1589 CLAMP,COOLING HOSEClamp,cooling hose; |
92037-1589 |
from US $12.04 |
||
|
92059
|
92059
92059-1383
TUBE,6X9X700
Tube,5x9x800; |
92059-1383 |
— | ||
| replacement | |||||
|
92059
|
92059
92191-1211 TUBE,6X9X700Tube,5x9x800; |
92191-1211 |
from US $6.38 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENRDamper rubber,rr fen; |
92075-209 |
from US $3.73 |
||
