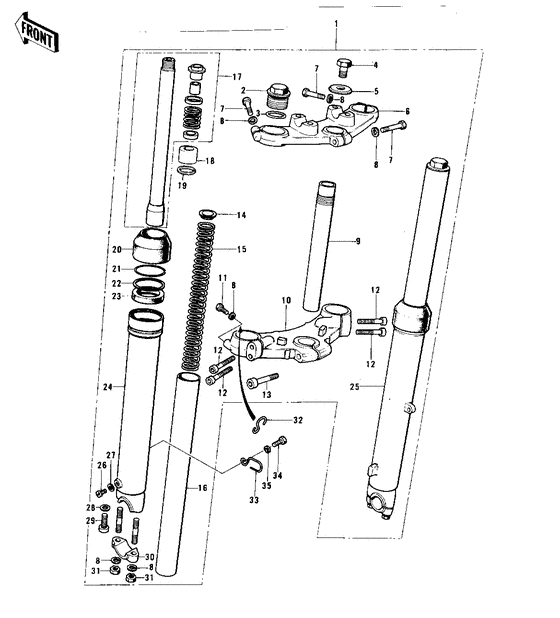

Front fork ('74 kx 450) Diagram Kawasaki KX450 KX450
- Year
- 1974
- Model code
- KX450
- Sales region
- USA
- Engine Capacity
- 450
- Model
- KX450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44001-138 FORK-FRONT |
44001-138 |
US $1,495.19 |
||
|
2
|
2
44041-037 BOLT-FORK FITTING |
44041-037 |
US $44.50 |
||
|
3
|
3
92055-1012 O RING,FORK TOP"o" ring,fork top; |
92055-1012 |
from US $3.89 |
||
|
4
|
4
44041-065 BOLT,FORK TOPBolt,fork top; |
44041-065 |
US $26.60 |
||
|
5
|
5
44043-055 WASHER,FORK TOP BOLTWasher,fork top bolt; |
44043-055 |
US $7.20 |
||
|
6
|
6
44039-059 HEAD,STEERING STEMHead,steering stem; |
44039-059 |
US $105.37 |
||
|
7
|
7
44041-045 BOLT-HEX HEAD.8M/M |
44041-045 |
from US $10.77 |
||
|
8
|
8
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
8
|
8
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
9
|
9
44052-009 SHAFT,STEERING STEMShaft,steering stem; |
44052-009 |
US $127.78 |
||
|
10
|
10
44038-007 STEM,STEERINGStem,steering; |
44038-007 |
US $190.98 |
||
|
11
|
11
44041-076 BOLT,HEX HEAD,8MMBolt,hex head,8mm; |
44041-076 |
US $2.70 |
||
|
12
|
12
44041-061 Bolt |
44041-061 |
US $5.06 |
||
|
13
|
13
44041-043 BOLT-STEERING STEM |
44041-043 |
US $3.64 |
||
|
14
|
14
44028-032
GUIDE,FORK SPRING
Guide,fork spring; |
44028-032 |
— | ||
|
15
|
15
44026-056
SPRING,FORK
Spring,fork; |
44026-056 |
— | ||
|
16
|
16
44013-048 TUBE,FORK INNERTube,fork inner; |
44013-048 |
US $162.07 |
||
|
17
|
17
44022-022 CYLINDER-FORK |
44022-022 |
US $87.64 |
||
|
18
|
18
44018-009 PISTON,FORKPiston,fork; |
44018-009 |
US $25.42 |
||
|
19
|
19
44044-019 CIRCLIP,FORK PISTONCirclip,fork piston; |
44044-019 |
US $7.02 |
||
|
20
|
20
44010-019
DUST SHIELD-FORK
|
44010-019 |
— | ||
|
21
|
21
44044-005
CIRCLIP OIL SEAL FIT
|
44044-005 |
— | ||
|
22
|
22
44043-023
WASHER OIL SEAL FIT
|
44043-023 |
— | ||
|
23
|
23
44009-020
OIL SEAL
Oil seal,fork; |
44009-020 |
— | ||
| replacement | |||||
|
23
|
23
44009-026 OIL SEALOil seal,fork; |
44009-026 |
from US $54.29 |
||
|
24
|
24
44005-056 TUBE,LH,FORK OUTERTube,lh,fork outer; |
44005-056 |
US $169.29 |
||
|
25
|
25
44006-054 TUBE,RH,FORK OUTERTube,rh,fork outer; |
44006-054 |
US $198.58 |
||
|
26
|
26
44041-062 SCREW |
44041-062 |
US $2.88 |
||
|
27
|
27
44045-045 GASKET |
44045-045 |
US $1.62 |
||
|
28
|
28
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
29
|
29
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
30
|
30
44063-008 HOLDER,FRONT AXLEHolder,front axle; |
44063-008 |
US $21.38 |
||
|
31
|
31
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
31
|
31
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
31
|
31
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
32
|
32
92037-126 Clamp, CableClamp,cable; |
92037-126 |
US $2.41 |
||
|
33
|
33
92037-127 Clamp, CableClamp,cable; |
92037-127 |
US $3.40 |
||
|
34
|
34
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
34
|
34
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
35
|
35
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
35
|
35
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
