	Description	OEM Part #	Price
11009	11009 11009-1592 GASKET,FORK CYLINDER Gasket,fork cylinder bolt;	11009-1592	from US $4.59
11065	11065 11065-0162 CAP,BASE VALVE Cap,base valve;	11065-0162	from US $200.38
11065A	11065A 11065-0163-10J CAP,FORK,TOP,GOLD Cap,fork,top,gold;	11065-0163-10J	from US $172.79
44008	44008 44008-0031-828 PIPE-FORK OUTER,GOLD Pipe-fork outer,gold;	44008-0031-828	from US $471.90
44013	44013 44013-0086 PIPE-FORK INNER,LH Pipe-fork inner,lh;	44013-0086	from US $605.48
44013A	44013A 44013-0087 PIPE-FORK INNER,RH Pipe-fork inner,rh;	44013-0087	from US $605.48
44023	44023 44023-0047-10J CYLINDER-SET-FORK,GOL Cylinder-set-fork,gold;	44023-0047-10J	from US $508.20
44026	44026 44026-0096 SPRING-FRONT FORK,K=4 Spring-front fork,k=4.6n/mm;	44026-0096	from US $68.97
44026A	44026A 44026-0105 SPRING-FRONT FORK,K=4 Spring-front fork,k=4.5n/mm; (option)	44026-0105	from US $68.97
44026B	44026B 44026-0106 SPRING-FRONT FORK,K=4 Spring-front fork,k=4.7n/mm; (option)	44026-0106	from US $68.97
44037	44037 44037-0033-10Y HOLDER-FORK UNDER,M.M Holder-fork under,m.m.gold;	44037-0033-10Y	from US $423.98
	replacement
44037	44037 44037-0075-10Y HOLDER-FORK UNDER,M.M Holder-fork under,m.m.gold;	44037-0075-10Y	from US $457.38
44039	44039 44039-0035-10Y HOLDER-FORK UPPER,M.M Holder-fork upper,m.m.gold;	44039-0035-10Y	from US $190.21
44065	44065 44065-0006 BUSHING-FRONT FORK	44065-0006	from US $13.15
44065A	44065A 44065-1140 BUSHING-FRONT FORK	44065-1140	from US $13.94
44071	44071 44071-5017 DAMPER-ASSY,FORK,LH Damper-assy,fork,lh;	44071-5017	from US $1,940.89
44071A	44071A 44071-5018 DAMPER-ASSY,FORK,RH Damper-assy,fork,rh;	44071-5018	from US $1,940.89
46102	46102 46102-0086 ROD,PISTON Rod,piston;	46102-0086	from US $332.51
49116	49116 49116-0015 VALVE-ASSY	49116-0015	from US $143.17
55020	55020 55020-0172-RZ GUARD,FORK,LH,WHITE Guard,fork,lh,white;	55020-0172-RZ	from US $41.44
55020A	55020A 55020-0334-RZ GUARD,FORK,RH,WHITE Guard,fork,rh,white;	55020-0334-RZ	from US $37.70
92009	92009 92009-1884 SCREW	92009-1884	from US $3.96
92026	92026 92026-0097 SPACER	92026-0097	from US $16
92033	92033 92033-0049 RING-SNAP	92033-0049	from US $2.22
92033A	92033A 92033-1329 RING-SNAP	92033-1329	from US $3.48
92049	92049 92049-0070 SEAL-OIL	92049-0070	from US $14.41
92055	92055 92055-0104 RING-O	92055-0104	from US $2.69
92055A	92055A 92055-0105 RING-O	92055-0105	from US $2.69
92055B	92055B 92055-0106 RING-O	92055-0106	from US $2.69
92055C	92055C 92055-0116 RING-O	92055-0116	from US $2.69
92055D	92055D 92055-0117 RING-O	92055-0117	from US $2.69
92055E	92055E 92055-1156 0 RING,18MM	92055-1156	from US $0.95
	replacement
92055E	92055E 670B2018 0 RING,18MM	670B2018	from US $3.20
92055F	92055F 92055-1441 O RING,3MM Ring-o,2.8x6.6x1.9;	92055-1441	US $2.85
	replacement
92055F	92055F 670B1503 O RING,3MM Ring-o,2.8x6.6x1.9;	670B1503	from US $2.85
92093	92093 92093-1566 SEAL,FORK OUTER TUBE Seal,fork outer tube;	92093-1566	from US $14.86
92153	92153 92153-0484 BOLT,FLANGED,8X40 Bolt,flanged,8x40;	92153-0484	from US $1.43
92153A	92153A 92153-0936 BOLT,FLANGED,6X14 Bolt,flanged,6x14;	92153-0936	from US $1.61
92171	92171 92171-0414 Clamp,Hose Clamp,hose;	92171-0414	from US $13.46
92200	92200 92200-0067 WASHER	92200-0067	from US $7.44
92210	92210 92210-0337 NUT	92210-0337	from US $12.20

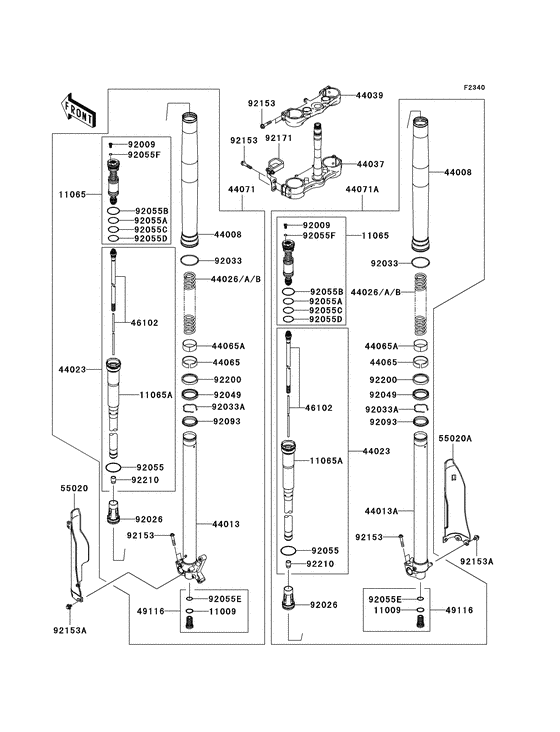

Front fork Diagram Kawasaki KX450 KX450F USA 10408217-683793

Front fork Diagram Kawasaki KX450 KX450F USA 10408217-683793
