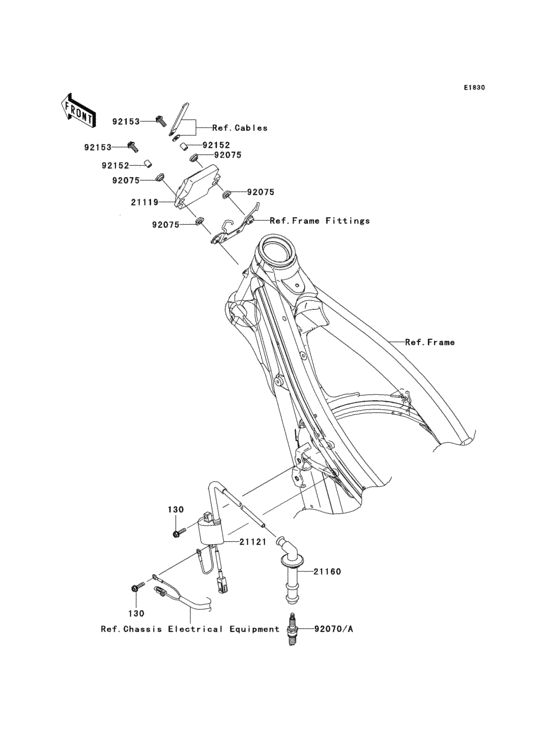

Ignition System Diagram Kawasaki KX450 KX450F
- Year
- 2008
- Colour
- Lime Green (777)
- Model code
- KX450D8F
- Sales region
- Australia
- Engine Capacity
- 450
- Model
- KX450F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130L0520 BOLT-FLANGED |
130L0520 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BB0520 BOLT-FLANGED |
130BB0520 |
from US $0.95 |
||
|
21119
|
21119
21119-0090 IGNITER |
21119-0090 |
from US $405.11 |
||
|
21121
|
21121
21121-0016 COIL-IGNITION |
21121-0016 |
from US $53.11 |
||
|
21160
|
21160
21160-0011 CAP-ASSY-PLUG |
21160-0011 |
from US $33.06 |
||
|
92070
|
92070
92070-0020 SPARK PLUG CPR8EB-9 |
92070-0020 |
from US $14.10 |
||
|
92070A
|
92070A
92070-0021 SPARK PLUG CPR9EB-9 |
92070-0021 |
from US $14.10 |
||
|
92075
|
92075
92075-1138 DAMPER,PILOT LAMP |
92075-1138 |
from US $2.69 |
||
|
92152
|
92152
92152-0261 COLLAR,6.5X8.5X11.5 |
92152-0261 |
from US $3.01 |
||
|
92153
|
92153
92153-0626 BOLT,6X20 |
92153-0626 |
from US $1.43 |
||
