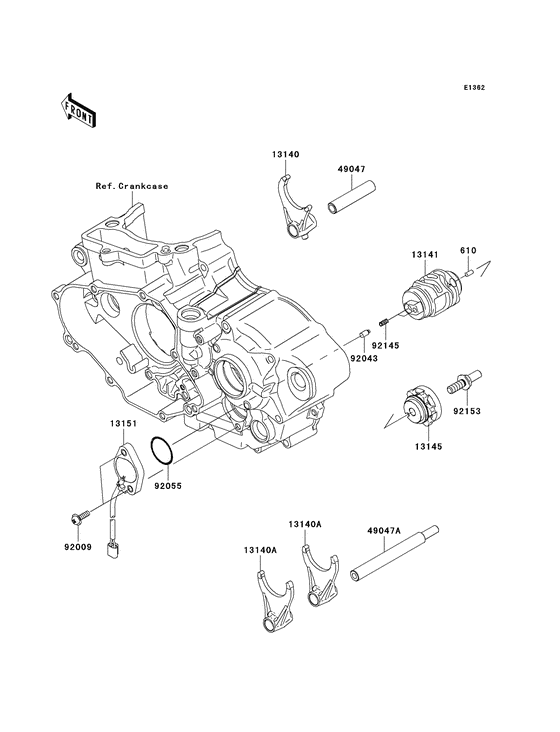

Gear change drum/shift fork Diagram Kawasaki KX450 KX450F
- Year
- 2009
- Model code
- KX450E9F
- Sales region
- USA
- Engine Capacity
- 450
- Model
- KX450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
|
13140
|
13140
13140-0043 FORK-SHIFT,INFork-shift,in; |
13140-0043 |
from US $60.44 |
||
|
13140A
|
13140A
13140-0044 FORK-SHIFT,OUTFork-shift,out; |
13140-0044 |
from US $65.23 |
||
|
13141
|
13141
13141-0050 DRUM-CHANGE |
13141-0050 |
from US $89.01 |
||
|
13145
|
13145
13145-0031 CAM-CHANGE DRUM |
13145-0031 |
from US $42.19 |
||
|
13151
|
13151
13151-0047 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-0047 |
from US $46.53 |
||
|
49047
|
49047
49047-0017 ROD-SHIFT,INRod-shift,in; |
49047-0017 |
from US $10.30 |
||
|
49047A
|
49047A
49047-0028 ROD-SHIFT,OUTRod-shift,out; |
49047-0028 |
from US $23.19 |
||
|
92009
|
92009
92009-1571 SCREW,5X16Screw,5x16; |
92009-1571 |
from US $1.74 |
||
|
92043
|
92043
92043-1654 PIN |
92043-1654 |
from US $1.90 |
||
|
92055
|
92055
92055-091 O RING,RELEASE PLUGRing-o,27.7x2.4; |
92055-091 |
from US $3.48 |
||
|
92145
|
92145
92145-1414 SPRING |
92145-1414 |
from US $2.69 |
||
|
92153
|
92153
92153-0530 BOLT,8X20Bolt,8x20; |
92153-0530 |
from US $3.17 |
||
| replacement | |||||
|
92153
|
92153
92154-4341 BOLT,8X20Bolt,8x20; |
92154-4341 |
from US $3.17 |
||
