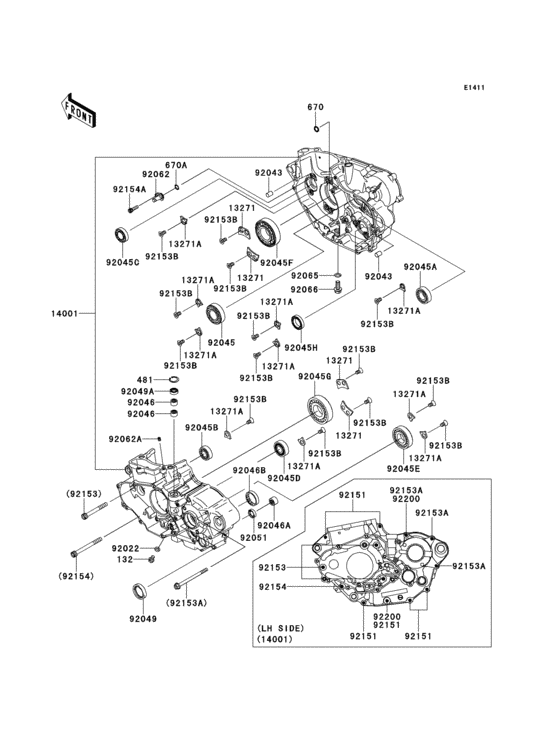

Crankcase Diagram Kawasaki KX450 KX450F
- Year
- 2009
- Colour
- Lime Green (777)
- Model code
- KX450E9F
- Sales region
- Australia
- Engine Capacity
- 450
- Model
- KX450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0608 BOLT-FLANGED-SMALL,6X |
132BA0608 |
from US $1.11 |
||
|
481
|
481
481J2100 CIRCLIP |
481J2100 |
from US $0.91 |
||
|
670
|
670
670D1507 O-RING |
670D1507 |
from US $2.13 |
||
|
670A
|
670A
670D1508 O RING,8M/M |
670D1508 |
from US $3.20 |
||
|
13271
|
13271
13271-0334 PLATE |
13271-0334 |
from US $4.59 |
||
|
13271A
|
13271A
13271-0345 PLATE |
13271-0345 |
from US $3.01 |
||
|
14001
|
14001
14001-0135 Set-crankcase |
14001-0135 |
from US $677.63 |
||
| replacement | |||||
|
14001
|
14001
14001-0601 SET-CRANKCASEクランクケ-ス |
14001-0601 |
from US $916.20 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92043
|
92043
92043-1506 PIN |
92043-1506 |
from US $1.90 |
||
|
92045
|
92045
92045-0035 BEARING-BALL,25X52X15 |
92045-0035 |
from US $20.75 |
||
|
92045A
|
92045A
92045-0036 BEARING-BALL,20X42X12 |
92045-0036 |
from US $19.01 |
||
|
92045B
|
92045B
92045-0037 BEARING-BALL,6202SH2C |
92045-0037 |
from US $13.46 |
||
|
92045C
|
92045C
92045-0038 BEARING-BALL,20X37X9 |
92045-0038 |
from US $18.06 |
||
|
92045D
|
92045D
92045-0057 BEARING-BALL,3TM-5X03 |
92045-0057 |
from US $20.79 |
||
|
92045E
|
92045E
92045-0062 BEARING-BALL |
92045-0062 |
from US $26.78 |
||
|
92045F
|
92045F
92045-0074 BEARING-BALL,B32-32-A |
92045-0074 |
from US $43.53 |
||
|
92045G
|
92045G
92045-0132 BEARING-BALL |
92045-0132 |
from US $37.10 |
||
|
92045H
|
92045H
92045-1432 BEARING-BALL,6805JRZ |
92045-1432 |
from US $20.79 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
|
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FM |
92046-0034 |
from US $12.67 |
||
|
92046A
|
92046A
92046-1148 BEARING-NEEDLE,HK1312 |
92046-1148 |
from US $15.68 |
||
|
92046B
|
92046B
92046-1221 BEARING-NEEDLE |
92046-1221 |
from US $27.58 |
||
|
92049
|
92049
92049-0030 OIL SEAL |
92049-0030 |
from US $14.86 |
||
|
92049A
|
92049A
92049-1475 SEAL-OIL,CLUTCH RELEASE |
92049-1475 |
from US $3.37 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92062
|
92062
92062-0017 NOZZLE |
92062-0017 |
from US $10.14 |
||
|
92062A
|
92062A
92062-1081 NOZZLE |
92062-1081 |
from US $3.96 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
92066
|
92066
92066-0038 PLUG,DRAIN,10X22 |
92066-0038 |
from US $4.80 |
||
|
92151
|
92151
92151-1545 BOLT,6X50 |
92151-1545 |
from US $1.43 |
||
|
92153
|
92153
92153-0846 BOLT,SOCKET,7X60 |
92153-0846 |
from US $7.44 |
||
| replacement | |||||
|
92153
|
92153
92154-0527 BOLT,SOCKET,7X60 |
92154-0527 |
from US $6.34 |
||
|
92153A
|
92153A
92153-0934 BOLT,FLANGED,6X85 |
92153-0934 |
from US $2.38 |
||
| replacement | |||||
|
92153A
|
92153A
92154-0528 BOLT,FLANGED,6X85 |
92154-0528 |
from US $1.90 |
||
|
92153B
|
92153B
92153-1669 BOLT,TORX,6X8.7 |
92153-1669 |
from US $2.06 |
||
| replacement | |||||
|
92153B
|
92153B
92154-1886 BOLT,TORX,6X8.7 |
92154-1886 |
from US $1.90 |
||
|
92154
|
92154
92154-0037 BOLT,SOCKET,7X75 |
92154-0037 |
from US $8.40 |
||
| replacement | |||||
|
92154
|
92154
92154-0529 BOLT,SOCKET,7X75 |
92154-0529 |
from US $7.60 |
||
|
92154A
|
92154A
92154-0038 BOLT,SOCKET,5X18 |
92154-0038 |
from US $0.79 |
||
|
92200
|
92200
92200-0171 WASHER,6.3X13.5X1.0 |
92200-0171 |
from US $1.43 |
||
