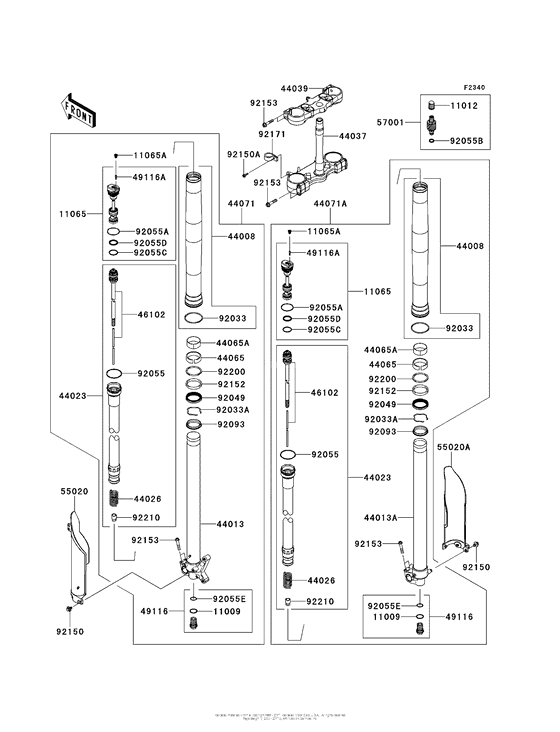

Front Fork Diagram Kawasaki KX450 KX450F
- Year
- 2014
- Model code
- KX450FEF
- Sales region
- USA
- Engine Capacity
- 450
- Model
- KX450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1592 GASKET,FORK CYLINDER |
11009-1592 |
from US $4.59 |
||
|
11012
|
11012
11012-1391 CAP,VALVE AIR |
11012-1391 |
from US $4.12 |
||
|
11065
|
11065
11065-0766-KW CAP,BLUE |
11065-0766-KW |
from US $214.62 |
||
|
11065A
|
11065A
11065-0767 CAP |
11065-0767 |
from US $4.75 |
||
|
44008
|
44008
44008-0056 PIPE-FORK OUTERフオ-クアウタ |
44008-0056 |
from US $534.34 |
||
|
44013
|
44013
44013-0183 PIPE-FORK INNERフオ-クインナ |
44013-0183 |
from US $576.44 |
||
|
44013A
|
44013A
44013-0184 PIPE-FORK INNERフオ-クインナ |
44013-0184 |
from US $576.44 |
||
|
44023
|
44023
44023-0105 CYLINDER-SET-FORKフオ-ク |
44023-0105 |
from US $589.51 |
||
|
44026
|
44026
44026-0169 SPRING-FRONT FORKフロントフオ-ク |
44026-0169 |
from US $65.67 |
||
|
44037
|
44037
44037-0134-21 HOLDER-FORK UNDER,F.Bブラツク; フオ-クアンダ |
44037-0134-21 |
from US $480.61 |
||
|
44039
|
44039
44039-0109-21 HOLDER-FORK UPPER,F.B |
44039-0109-21 |
from US $190.21 |
||
|
44065
|
44065
44065-0021 BUSHING-FRONT FORK |
44065-0021 |
from US $14.10 |
||
|
44065A
|
44065A
44065-0022 BUSHING-FRONT FORK |
44065-0022 |
from US $15.05 |
||
|
44071
|
44071
44071-0843 DAMPER-ASSY,FORK,LH |
44071-0843 |
from US $1,741.82 |
||
|
44071A
|
44071A
44071-0844 DAMPER-ASSY,FORK,RH |
44071-0844 |
from US $1,741.82 |
||
|
46102
|
46102
46102-0581 ROD |
46102-0581 |
from US $531.43 |
||
|
49116
|
49116
49116-0020 VALVE-ASSY |
49116-0020 |
from US $154.09 |
||
|
49116A
|
49116A
49116-0034 VALVE-ASSY |
49116-0034 |
from US $22.29 |
||
|
55020
|
55020
55020-0441-6C GUARD,FORK,LH,EBONY |
55020-0441-6C |
from US $34.86 |
||
|
55020A
|
55020A
55020-0442-6C GUARD,FORK,RH,EBONY |
55020-0442-6C |
from US $34.86 |
||
|
57001
|
57001
57001-0725 AIR VALVE, FORKKYB; スペシヤル |
57001-0725 |
from US $27.58 |
||
|
92033
|
92033
92033-0075 RING-SNAP |
92033-0075 |
from US $2.38 |
||
|
92033A
|
92033A
92033-1329 RING-SNAP |
92033-1329 |
from US $3.48 |
||
|
92049
|
92049
92049-0737 SEAL-OILオイル |
92049-0737 |
from US $19.64 |
||
|
92055
|
92055
92055-0104 RING-O |
92055-0104 |
from US $2.69 |
||
|
92055A
|
92055A
92055-0106 RING-O |
92055-0106 |
from US $2.69 |
||
|
92055B
|
92055B
92055-0747 RING-O |
92055-0747 |
from US $3.17 |
||
|
92055C
|
92055C
92055-0759 RING-O |
92055-0759 |
from US $3.17 |
||
|
92055D
|
92055D
92055-1135 RING-O,FORK SPRING SE |
92055-1135 |
from US $4.44 |
||
|
92055E
|
92055E
670B2018 0 RING,18MM |
670B2018 |
from US $3.20 |
||
|
92093
|
92093
92093-1566 SEAL,FORK OUTER TUBE |
92093-1566 |
from US $14.86 |
||
|
92150
|
92150
92150-1340
BOLT,6X14
|
92150-1340 |
— | ||
| replacement | |||||
|
92150
|
92150
92150-1505 Bolt |
92150-1505 |
from US $3.01 |
||
|
92150A
|
92150A
92150-1802 BOLT,5X16 |
92150-1802 |
from US $3.01 |
||
|
92152
|
92152
92152-0824 COLLAR |
92152-0824 |
from US $3.48 |
||
|
92153
|
92153
92153-0020 BOLT,8X40 |
92153-0020 |
from US $3.90 |
||
|
92171
|
92171
92171-0820 Clamp |
92171-0820 |
from US $3.64 |
||
|
92200
|
92200
92200-0532 WASHER |
92200-0532 |
from US $2.53 |
||
|
92210
|
92210
92210-0337 NUT |
92210-0337 |
from US $12.20 |
||
