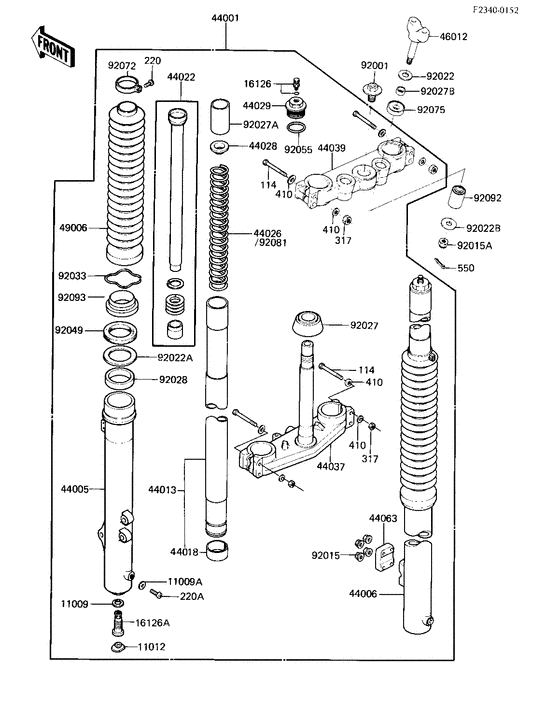

Front fork ('83 a1) Diagram Kawasaki KX500
- Year
- 1983
- Model code
- KX500-A1
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
114
|
114
114G0855 BOLT-SMALL-UPSET,8X55Bolt,hex head,8x55; |
114G0855 |
US $45.40 |
||
| replacements | |||||
|
114
|
114
115BA0855 BOLT-SMALL-UPSETBolt,hex head,8x55; |
115BA0855 |
US $1.24 |
||
|
114
|
114
115G0855
BOLT-SMALL-UPSET,8X55
Bolt,hex head,8x55; |
115G0855 |
— | ||
|
220
|
220
220B0316 SCREW-PAN-CROS |
220B0316 |
from US $0.45 |
||
|
220A
|
220A
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
317
|
317
317G0800 NUT-HEX-SMALL,8MMNut,8mm; |
317G0800 |
from US $1.11 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MMNut,8mm; |
317BA0800 |
from US $0.95 |
||
|
410
|
410
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; |
410B0800 |
— | ||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
550
|
550
550D2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550D2020 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550AA2020 |
from US $0.79 |
||
|
11009
|
11009
11009-1324 GASKET,FORK CYLINDERGasket,fork cylinder; |
11009-1324 |
from US $4.12 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11012
|
11012
11012-1277 CAP,FORK CYLINDERCap,fork cylinder; |
11012-1277 |
US $2.84 |
||
|
16126
|
16126
16126-1048 VALVE,AIR FRONT FORKValve,air front fork; |
16126-1048 |
US $16.90 |
||
|
16126A
|
16126A
16126-1054 VALVE,FORK CYLINDERValve,fork cylinder; |
16126-1054 |
US $70.87 |
||
|
44001
|
44001
44001-1366 FORK-FRONT |
44001-1366 |
US $1,982.34 |
||
|
44005
|
44005
44005-1122 PIPE-LEFT FORK OUTER |
44005-1122 |
US $444.64 |
||
|
44006
|
44006
44006-1122 PIPE-RIGHT FORK OUTER |
44006-1122 |
US $444.64 |
||
|
44013
|
44013
44013-1114 PIPE-FORK INNER |
44013-1114 |
US $398 |
||
|
44018
|
44018
44018-1005 PISTON-FORKPiston-fork; |
44018-1005 |
from US $32.60 |
||
|
44022
|
44022
44022-1094 CYLINDER-FORK |
44022-1094 |
US $110.38 |
||
|
44026
|
44026
44026-1191 SPRING-FRONT FORK |
44026-1191 |
US $52.06 |
||
|
44028
|
44028
44028-1011 GUIDE-FORK SPRING |
44028-1011 |
US $5.81 |
||
|
44029
|
44029
44029-1041 SEAT-FORK SPRING |
44029-1041 |
US $46.08 |
||
|
44037
|
44037
44037-1084 Holder-fork under |
44037-1084 |
US $509.47 |
||
|
44039
|
44039
44039-1075 HOLDER-FORK UPPER |
44039-1075 |
US $229.30 |
||
|
44063
|
44063
44063-1008 HOLDER-FRONT AXLE |
44063-1008 |
from US $42.57 |
||
|
46012
|
46012
46012-1015 HOLDER-HANDLE |
46012-1015 |
US $20.57 |
||
|
49006
|
49006
49006-1081 BOOT |
49006-1081 |
US $63.52 |
||
|
92001
|
92001
92001-1520 Bolt |
92001-1520 |
US $14.06 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015A
|
92015A
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
|
92022
|
92022
92022-1239
WASHER,12.4X28X2.3
Washer,12.4x28x2.3; |
92022-1239 |
— | ||
| replacement | |||||
|
92022
|
92022
92022-1303
WASHER,12.4X28X2.3,BL
Washer,12.4x28x2.3; |
92022-1303 |
— | ||
|
92022B
|
92022B
92022-196
WASHER-HANDLEBAR FIT
|
92022-196 |
— | ||
|
92027
|
92027
92027-1427 COLLAR,FRONT FORKCollar,front fork; |
92027-1427 |
US $57.15 |
||
|
92027A
|
92027A
92027-1448 COLLAR,FORK INNERCollar,fork inner; |
92027-1448 |
US $9.23 |
||
|
92027B
|
92027B
92027-1474 COLLAR,12.5X16X8Collar,12.5x16x8; |
92027-1474 |
US $3.71 |
||
|
92028
|
92028
92028-1145 Bushing |
92028-1145 |
US $16.27 |
||
| replacement | |||||
|
92028
|
92028
92028-1581 BUSHING |
92028-1581 |
from US $16.16 |
||
|
92033
|
92033
92033-1077 RING-SNAP |
92033-1077 |
from US $3.01 |
||
|
92049
|
92049
92049-1295 SEAL-OIL,FORK OUTER TSeal-oil,fork outer t; |
92049-1295 |
from US $15.05 |
||
|
92055
|
92055
92055-1123 RING-O |
92055-1123 |
from US $3.48 |
||
|
92072
|
92072
92072-1078 BAND |
92072-1078 |
from US $7.60 |
||
|
92075
|
92075
92075-1398 DAMPER,HANDLE HOLDERDamper,handle holder; |
92075-1398 |
US $3.31 |
||
|
92081
|
92081
92081-1548 SPRING,FRONT FORK,K=0Spring,front fork,k=0; (option) |
92081-1548 |
US $53.28 |
||
|
92092
|
92092
92092-005 BUSH SWING ARM SHAFTBush swing arm shaft; |
92092-005 |
from US $9.03 |
||
|
92093
|
92093
92093-1086 SEAL,FORK DUSTSeal,fork dust; |
92093-1086 |
from US $13.15 |
||
