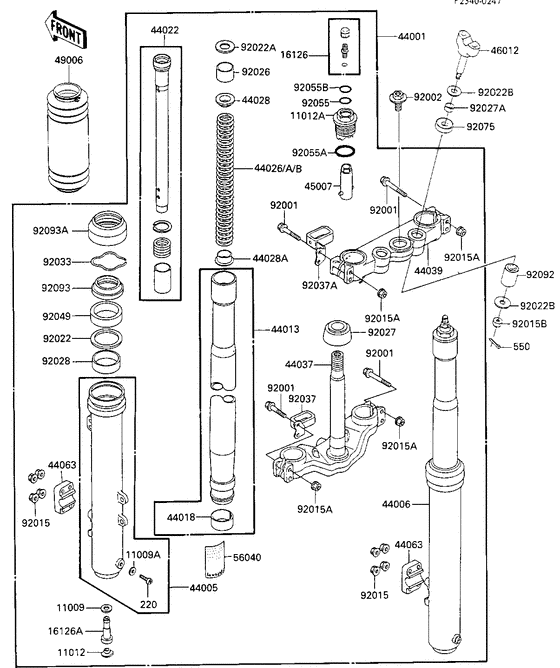

Front fork Diagram Kawasaki KX500
- Year
- 1985
- Model code
- KX500-B1
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
550
|
550
550D2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550D2020 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550AA2020 |
from US $0.79 |
||
|
11009
|
11009
11009-1324 GASKET,FORK CYLINDERGasket,fork cylinder; |
11009-1324 |
from US $4.12 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11012
|
11012
11012-1381 CAP,FORK CYLINDERCap,fork cylinder; |
11012-1381 |
from US $4.28 |
||
|
11012A
|
11012A
11012-1439 CAP |
11012-1439 |
US $65.74 |
||
|
16126
|
16126
16126-1052 VALVE AIRValve air; |
16126-1052 |
from US $23.34 |
||
|
16126A
|
16126A
16126-1134
VALVE,FORK CYLINDER
Valve,fork cylinder; |
16126-1134 |
— | ||
|
44001
|
44001
44001-1560 FORK-FRONT |
44001-1560 |
US $1,707.86 |
||
|
44005
|
44005
44005-1224 PIPE-LEFT FORK OUTER |
44005-1224 |
US $334.87 |
||
|
44006
|
44006
44006-1224 PIPE-RIGHT FORK OUTER |
44006-1224 |
US $334.87 |
||
|
44013
|
44013
44013-1223 PIPE-FORK INNER |
44013-1223 |
US $432.63 |
||
|
44018
|
44018
44018-1005 PISTON-FORKPiston-fork; |
44018-1005 |
from US $32.60 |
||
|
44022
|
44022
44022-1176 CYLINDER-FORK |
44022-1176 |
US $130.21 |
||
|
44026
|
44026
44026-1294 SPRING-FRONT FORK,K=0Spring-front fork,k=0; (option) |
44026-1294 |
US $84.15 |
||
|
44026A
|
44026A
44026-1324 SPRING-FRONT FORK,K=0Spring-front fork,k=0; |
44026-1324 |
US $85.46 |
||
|
44026B
|
44026B
44026-1314 SPRING-FRONT FORK,K=0Spring-front fork,k=0; (option) |
44026-1314 |
US $85.46 |
||
|
44028
|
44028
44028-1010 GUIDE-FORK SPRING |
44028-1010 |
from US $8.87 |
||
|
44028A
|
44028A
44028-1054 GUIDE-FORK SPRING |
44028-1054 |
US $5.65 |
||
|
44037
|
44037
44037-1177 Holder-fork under |
44037-1177 |
US $491.27 |
||
|
44039
|
44039
44039-1120 HOLDER-FORK UPPER |
44039-1120 |
US $271.15 |
||
|
44063
|
44063
44063-1008 HOLDER-FRONT AXLE |
44063-1008 |
from US $42.57 |
||
|
45007
|
45007
45007-1055 ADJUSTER-SPRING,FRONTAdjuster-spring,front; |
45007-1055 |
US $48.24 |
||
|
46012
|
46012
46012-1124 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1124 |
US $33.64 |
||
|
49006
|
49006
49006-1178 BOOT(option) |
49006-1178 |
US $131.33 |
||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
Label,front fork; |
56040-1120 |
— | ||
|
92001
|
92001
92001-1639 Bolt |
92001-1639 |
from US $4.75 |
||
|
92002
|
92002
92002-1399 BOLT,FORK TOPBolt,fork top; |
92002-1399 |
US $32.90 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1485 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1485 |
from US $3.17 |
||
|
92015B
|
92015B
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015B
|
92015B
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015B
|
92015B
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
|
92022
|
92022
92022-1299 WASHER |
92022-1299 |
from US $5.39 |
||
|
92022A
|
92022A
92022-1665 WASHER,FORK SPRINGWasher,fork spring; |
92022-1665 |
US $3.55 |
||
|
92022B
|
92022B
92022-196
WASHER-HANDLEBAR FIT
|
92022-196 |
— | ||
|
92026
|
92026
92026-1247 SPACER,FORK SPRINGSpacer,fork spring; |
92026-1247 |
US $9.07 |
||
|
92027
|
92027
92027-1427 COLLAR,FRONT FORKCollar,front fork; |
92027-1427 |
US $57.15 |
||
|
92027A
|
92027A
92027-1850 COLLAR,10.5X15.1X6Collar,10.5x15.1x6; |
92027-1850 |
US $4.52 |
||
|
92028
|
92028
92028-1145 Bushing |
92028-1145 |
US $16.27 |
||
| replacement | |||||
|
92028
|
92028
92028-1581 BUSHING |
92028-1581 |
from US $16.16 |
||
|
92033
|
92033
92033-1077 RING-SNAP |
92033-1077 |
from US $3.01 |
||
|
92037
|
92037
92037-1627 Clamp |
92037-1627 |
from US $16.63 |
||
|
92037A
|
92037A
92037-1628
Clamp
|
92037-1628 |
— | ||
|
92049
|
92049
92049-1295 SEAL-OIL,FORK OUTER TSeal-oil,fork outer t; |
92049-1295 |
from US $15.05 |
||
|
92055
|
92055
92055-1062 O RING,22MM"o"ring,fork top cap; |
92055-1062 |
US $3.60 |
||
| replacement | |||||
|
92055
|
92055
670B2022 O RING,22MM"o"ring,fork top cap; |
670B2022 |
from US $2.85 |
||
|
92055A
|
92055A
92055-1123 RING-O |
92055-1123 |
from US $3.48 |
||
|
92055B
|
92055B
92055-1288 RING-O |
92055-1288 |
US $2.66 |
||
|
92075
|
92075
92075-1725 DAMPER,HANDLE HOLDERDamper,handle holder; |
92075-1725 |
US $3.11 |
||
|
92092
|
92092
92092-1053 BUSHING-RUBBER |
92092-1053 |
US $48.78 |
||
|
92093
|
92093
92093-1086 SEAL,FORK DUSTSeal,fork dust; |
92093-1086 |
from US $13.15 |
||
|
92093A
|
92093A
92093-1184 SEAL,FORKSeal,fork; |
92093-1184 |
US $16.27 |
||
