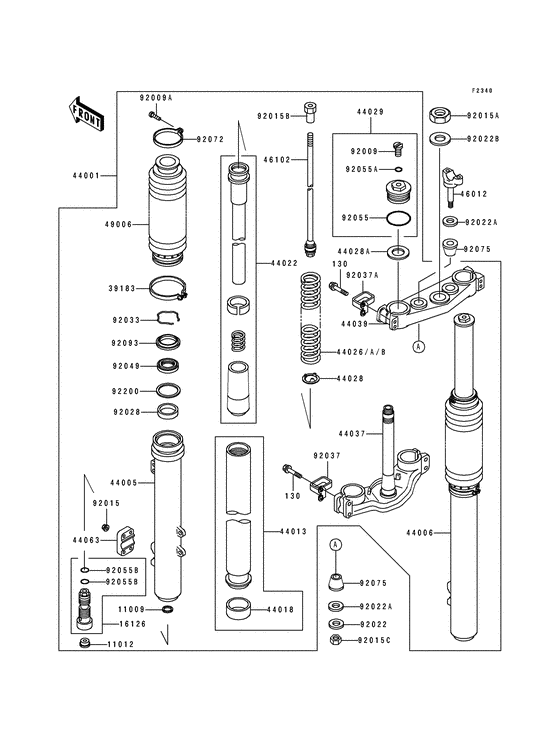

Front fork (Kx500-e1) Diagram Kawasaki KX500
- Year
- 1989
- Model code
- KX500-E1
- Sales region
- USA
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1791 GASKET |
11009-1791 |
US $4.44 |
||
|
11012
|
11012
11012-1381 CAP,FORK CYLINDERCap,fork cylinder; |
11012-1381 |
from US $4.28 |
||
|
16126
|
16126
16126-1221 VALVE |
16126-1221 |
US $109.53 |
||
|
39183
|
39183
39183-1056
BAND-ASSY,BOOT
Band-assy,boot; |
39183-1056 |
— | ||
|
44001
|
44001
44001-1730 FORK-FRONT |
44001-1730 |
US $2,639.63 |
||
|
44005
|
44005
44005-1289 PIPE-LEFT FORK OUTER |
44005-1289 |
US $454.25 |
||
|
44006
|
44006
44006-1286 PIPE-RIGHT FORK OUTER |
44006-1286 |
US $351.90 |
||
|
44013
|
44013
44013-1290 PIPE-FORK INNER |
44013-1290 |
US $431.96 |
||
|
44018
|
44018
44018-1055 PISTON-FORK,INNER PIPPiston-fork,inner pipe; |
44018-1055 |
US $21.51 |
||
|
44022
|
44022
44022-1237 CYLINDER-FORK |
44022-1237 |
US $206.17 |
||
|
44026
|
44026
44026-1424
SPRING-FRONT FORK,K=0
Spring-front fork,k=0.38; (option) |
44026-1424 |
— | ||
|
44026A
|
44026A
44026-1425
SPRING-FRONT FORK,K=0
Spring-front fork,k=0.39; |
44026-1425 |
— | ||
|
44026B
|
44026B
44026-1427 SPRING-FRONT FORK,K=0Spring-front fork,k=0.40; (option) |
44026-1427 |
US $81.50 |
||
|
44028
|
44028
44028-1066 GUIDE-FORK SPRING |
44028-1066 |
US $7.79 |
||
|
44028A
|
44028A
44028-1067 GUIDE-FORK SPRING |
44028-1067 |
US $6.55 |
||
|
44029
|
44029
44029-1138 SEAT-FORK SPRING |
44029-1138 |
US $72.74 |
||
|
44037
|
44037
44037-1257 Holder-fork under |
44037-1257 |
US $475.22 |
||
|
44039
|
44039
44039-1192 HOLDER-FORK UPPER |
44039-1192 |
US $209.97 |
||
|
44063
|
44063
44063-1056 HOLDER-FRONT AXLE |
44063-1056 |
from US $37.85 |
||
|
46012
|
46012
46012-1192 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1192 |
US $33.36 |
||
|
46102
|
46102
46102-1271 ROD,FORKRod,fork; |
46102-1271 |
US $174.10 |
||
|
49006
|
49006
49006-1256
BOOT,FORK
Boot,fork; |
49006-1256 |
— | ||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92009A
|
92009A
92009-1573
SCREW,3.5X10
Screw,3.5x10; |
92009-1573 |
— | ||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut,flanged,6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1653
NUT,STEERING STEM,22M
Nut,steering stem,22mm; |
92015-1653 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-1521 NUT,STEERING STEM,22MNut,steering stem,22mm; |
92210-1521 |
from US $10.30 |
||
|
92015B
|
92015B
92015-1776 NUT |
92015-1776 |
from US $14.06 |
||
|
92015C
|
92015C
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015C
|
92015C
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015C
|
92015C
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1737 WASHER |
92022-1737 |
from US $3.17 |
||
|
92022B
|
92022B
92022-1873 WASHERWasher,steering stem; |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1570
BUSHING
|
92028-1570 |
— | ||
|
92033
|
92033
92033-1264 RING-SNAP |
92033-1264 |
from US $3.80 |
||
|
92037
|
92037
92037-1627 Clamp |
92037-1627 |
from US $16.63 |
||
|
92037A
|
92037A
92037-1628
Clamp
|
92037-1628 |
— | ||
|
92049
|
92049
92049-1341 SEAL-OIL |
92049-1341 |
US $22.91 |
||
|
92055
|
92055
92055-1140
0 RING,36MM
Ring-o,tube assy; |
92055-1140 |
— | ||
| replacement | |||||
|
92055
|
92055
670B3036 0 RING,36MMRing-o,tube assy; |
670B3036 |
from US $1.45 |
||
|
92055A
|
92055A
92055-1441 O RING,3MM |
92055-1441 |
US $2.85 |
||
| replacement | |||||
|
92055A
|
92055A
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92055B
|
92055B
92055-1462
RING-O
|
92055-1462 |
— | ||
|
92072
|
92072
92072-1247
BAND
|
92072-1247 |
— | ||
|
92075
|
92075
92075-1776 DAMPER |
92075-1776 |
from US $4.75 |
||
|
92093
|
92093
92093-1281
SEAL
|
92093-1281 |
— | ||
|
92200
|
92200
92200-1006 WASHER |
92200-1006 |
from US $7.76 |
||
|
130
|
130
130G0840
BOLT-FLANGED,8X40
Bolt-flanged,8x40; |
130G0840 |
— | ||
| replacements | |||||
|
130
|
130
130CA0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130CA0840 |
from US $1.27 |
||
|
130
|
130
130BA0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130BA0840 |
from US $1.27 |
||
