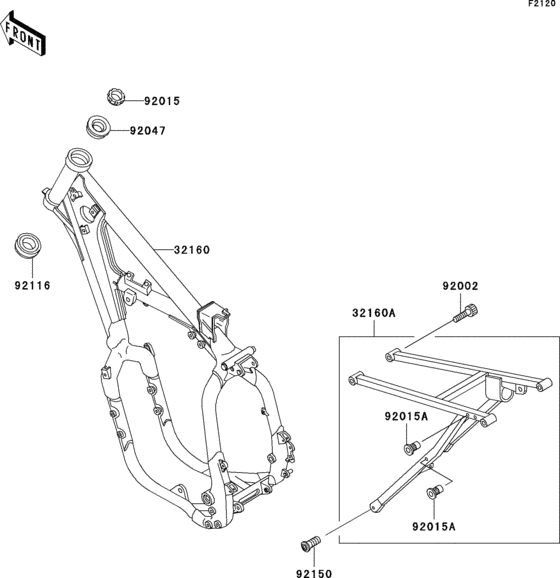

Frame Diagram Kawasaki KX500
- Year
- 2003
- Model code
- KX500-E15
- Sales region
- Europe
- Engine Capacity
- 500
- Model
- KX500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32160
|
32160
32160-1806-GD FRAME-COMP,FR,G.GRAY |
32160-1806-GD |
US $2,150.14 |
||
|
32160A
|
32160A
32160-1807-GD FRAME-COMP,AL,RR,G.GR |
32160-1807-GD |
US $696.60 |
||
|
92002
|
92002
92002-1713 BOLT,SOCKET,10X17 |
92002-1713 |
from US $3.96 |
||
|
92015
|
92015
92015-1684 NUT,STEERING STEM,25M |
92015-1684 |
from US $13.31 |
||
|
92015A
|
92015A
92015-1792 NUT,POP,6MM,L=16.5 |
92015-1792 |
from US $2.85 |
||
|
92047
|
92047
92047-017 BEARING,STEERING STEM |
92047-017 |
from US $25.58 |
||
|
92116
|
92116
92116-1008 BEARING,ROLLER,32006 |
92116-1008 |
from US $44.28 |
||
|
92150
|
92150
92150-1266 Bolt |
92150-1266 |
from US $5.07 |
